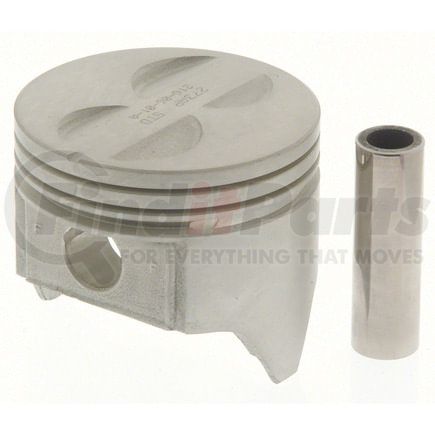

Name: Sealed Power L-2488F 30 "Speed Pro" POWERFORGED Engine Piston Set
SKU: l2488f30
Price: 739.92 USD
Availability: InStock

SEALED POWER part description

Product Description

Engine Piston Set

Application Summary

1987-1992 Ford Mustang (Liter: 5.0 & Engine(ci): 302 & Cylinder: 8 & Block: V & Bore(in): 4.00 & Bore(mm): 101.6 & Stroke(in): 3.00 & Stroke(mm): 76.2 / Qualifier: 3 Ring Piston, 1.619 (in) Compression Distance, Flat Head Piston with 4 Valve Reliefs, Priced By The Piece, Ring Groove Widths: 1.50 (mm) , 1.50 (mm) , 4.00 (mm), DUROSHIELD Skirt Coated Piston, Sold as Set, POWERFORGED Piston, 0.030 (in) Oversize); 1988-1992 Lincoln Mark VII (Liter: 5.0 & Engine(ci): 302 & Cylinder: 8 & Block: V & Bore(in): 4.00 & Bore(mm): 101.6 & Stroke(in): 3.00 & Stroke(mm): 76.2 / Qualifier: 3 Ring Piston, 1.619 (in) Compression Distance, Flat Head Piston with 4 Valve Reliefs, Priced By The Piece, Ring Groove Widths: 1.50 (mm) , 1.50 (mm) , 4.00 (mm), DUROSHIELD Skirt Coated Piston, Sold as Set, POWERFORGED Piston, 0.030 (in) Oversize)

Features & Benefits

Forged under 3,000 tons of force.
Fully updated skirt profiles
Exclusive DUROSHIELD(R) skirt coating. DUROSHIELD(R) provides scuff resistance, reduced bore clearances and enhanced ring sealing.
SPEED-PRO(R) POWERFORGED(R) pistons are built to stringent specifications with a precision CNC-machined dome and skirts and microfinished ring grooves.
The manufacturing process ensures that piston weights within a boxed set will not vary more than 4 grams and that skirt sizes are matched to within 0.016mm (0.0006") per set.
Machined valve reliefs and circlip grooves; LR-63 lock rings for floated applications

Product Attributes

Oversized	Yes
Assembly Lubricant Included	No
Bore Diameter	4.030 IN
Piston Material	POWERFORGED(R)
9607	1.619 IN
Dome Volume CC	-2.0
Head Illustration	26
Head Type	Flat, 4 reliefs; DUROSHIELD skirt coated piston
Lock Ring	N/R
Minimum Clearance	.0018
Oil Ring Thickness	4.00mm MM
Oversize Inch	.030
Part Description	Engine Piston
Pin Diameter (Inch)	0.912
Pin Type	P
Pin Weight Gram	143
Second Compression Ring Thickness	1.50mm MM
Top Compression Ring Thickness	1.50mm MM
Weight W Pin Gram	741
Weight w/o Pin Gram	598

Additional Information

Country of Origin (Primary)	IN
Canadian Harmonizing Tariff Code	8409910010
Harmonized Tariff Code (HTS)	8409915085
UPC	00087674139540

Speed-Pro® is the go-to brand not only for racers and performance enthusiasts but also for those who are cruising down the road day in day out. With its engineering expertise, advanced technologies, and industry-leading manufacturing facilities and techniques, Speed-Pro sets the bar higher for other manufacturers of pistons, engine bearing parts, and performance engine components. The engine solutions from Speed-Pro are meticulously designed and crafted to boost horsepower production and make engine rebuild an easy feat. Since its establishment, this brand has continuously improved and refined its operations and quality control measures to maintain high quality standards and satisfy customers’ requirements and demands.

Fits Vehicles

Lincoln Mark VII (1988-1992)
Ford Mustang (1987-1992)
