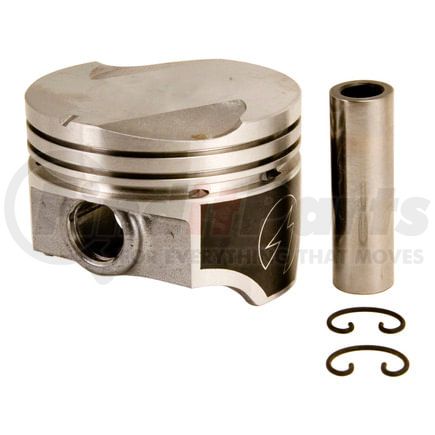

Sealed Power H555CP 30 - "Speed Pro" Engine Piston Cast Set
- Part Number
- H555CP 30
- Manufacturer
- SEALED POWER
- Description
-
"Speed Pro" Engine Piston Cast Set
details
$45992
Package Price for 8 Units
@ $57.49 per unit
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
SEALED POWER part description
Product Description
Engine Piston Set
Application Summary
1970-1972 Ford Country Sedan; 1970 Ford Fairlane; 1970 Ford Falcon; 1970-1972 Ford Galaxie 500; 1970-1972 Ford Ranch Wagon; 1970-1972 Ford Custom; 1970-1972 Ford Country Squire; 1970-1972 Ford LTD; 1970-1972 Ford Custom 500; 1972 Ford Gran Torino; 1970-1972 Ford Mustang; 1970-1972 Ford Torino; 1970-1972 Mercury Monterey; 1970-1971 Mercury Cyclone; 1970-1972 Mercury Colony Park; 1970-1972 Mercury Cougar; 1970-1972 Mercury Marquis; 1970-1972 Mercury Montego
Features & Benefits
- Exclusive higher-strength FM-425 alloy with 16.5 percent silicon finely dispersed throughout the material
- Sophisticated "barrel" profiles help optimize oil wedge between skirt and wall.
- Piston skirts protected by next-gen DUROSHIELD(R) coating.
- TACTM ring groove geometry
- Weight matched to +/- 2 grams.
- Machined valve reliefs and circlip grooves; LR-63 lock rings for floated applications
Product Attributes
| Oversized | Yes |
| Top Compression Ring Thickness | 0.0781 IN |
| Second Compression Ring Thickness | 0.0781 IN |
| Oil Ring Thickness | 0.1875 IN |
| Assembly Lubricant Included | No |
| Bore Diameter | 4.030 IN |
| Piston Material | Hypereutectic |
| 9607 | 1.645 IN |
| Dome Volume CC | -2.0 |
| Head Illustration | 46 |
| Head Type | Flat, 2 reliefs; DUROSHIELD skirt coated piston |
| Lock Ring | Included |
| Minimum Clearance | .0010 |
| Oversize Inch | .030 |
| Part Description | Engine Piston |
| Pin Diameter (Inch) | 0.912 |
| Pin Type | F |
| Pin Weight Gram | 152 |
| Weight W Pin Gram | 736 |
| Weight w/o Pin Gram | 584 |
Additional Information
| Country of Origin (Primary) | IN |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00614046701779 |
Part Interchanges
Speed-Pro® is the go-to brand not only for racers and performance enthusiasts but also for those who are cruising down the road day in day out. With its engineering expertise, advanced technologies, and industry-leading manufacturing facilities and techniques, Speed-Pro sets the bar higher for other manufacturers of pistons, engine bearing parts, and performance engine components. The engine solutions from Speed-Pro are meticulously designed and crafted to boost horsepower production and make engine rebuild an easy feat. Since its establishment, this brand has continuously improved and refined its operations and quality control measures to maintain high quality standards and satisfy customers’ requirements and demands.Fits Vehicles
- Ford Custom (1970-1972)
- Mercury Monterey (1970-1972)
- Mercury Montego (1970-1972)
- Mercury Marquis (1970-1972)
- Mercury Cyclone (1970-1971)
- Mercury Cougar (1970-1972)
- Mercury Colony Park (1970-1972)
- Ford Torino (1970-1972)
- Ford Ranch Wagon (1970-1972)
- Ford Mustang (1970-1972)
- Ford Gran Torino (1972)
- Ford LTD (1970-1972)
- Ford Galaxie 500 (1970-1972)
- Ford Custom 500 (1970-1972)
- Ford Fairlane (1970)
- Ford Falcon (1970)
- Ford Country Squire (1970-1972)
- Ford Country Sedan (1970-1972)
