Sealed Power 381NP 20 - Sealed Power 381NP 20 Engine Piston Set
- Part Number
- 381NP 20
- Manufacturer
- SEALED POWER
- Description
-

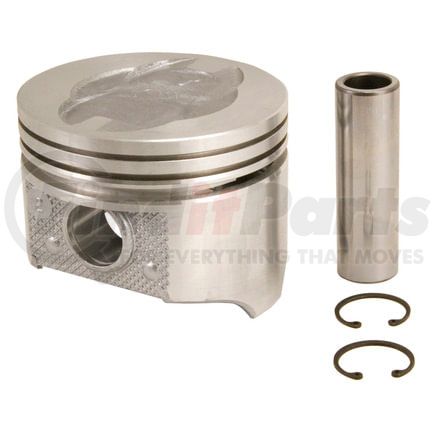

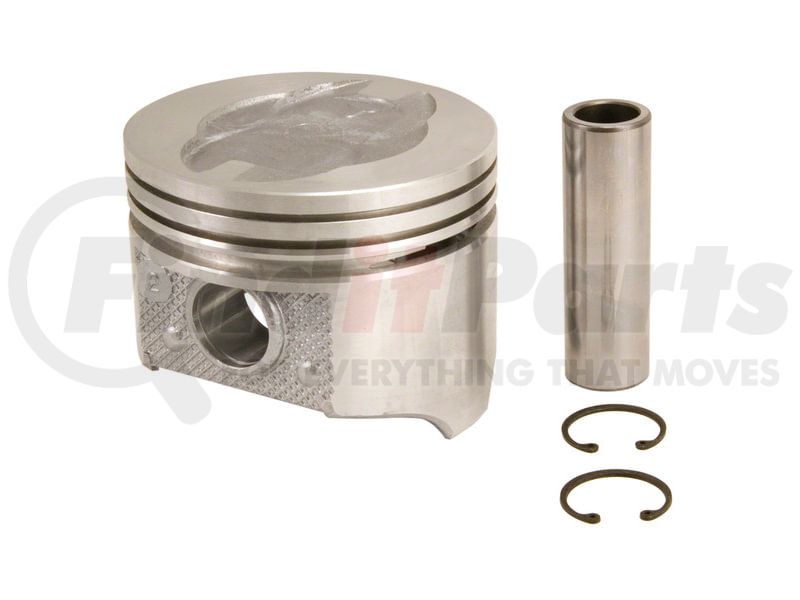

Sealed Power 381NP 20 Engine Piston Set
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
SEALED POWER part description
Product Description
Engine Piston Set
Features & Benefits
- Cast with FM132 Eutectic proprietary alloy
- Performance & dependability of original equipment pistons
- High quality aluminum
- Utilizes ISO & QS certified manufacturing
- Meets or exceeds OEM specifications
Product Attributes
| Oversized | Yes |
| Top Compression Ring Thickness | 0.0781 IN |
| Second Compression Ring Thickness | 0.0937 IN |
| Oil Ring Thickness | 0.1875 IN |
| Piston Pin Outside Diameter | 0.9753 IN |
| Assembly Lubricant Included | No |
| Bore Diameter | 4.0500 IN |
| Piston Material | Cast Aluminum |
| 9607 | 1.660 IN |
| Head Illustration | 31 |
| Head Type | Recessed Head .097 deep x 2.620 dia. w/4 valve pockets |
| Minimum Clearance | 0.0015 @ 2.630 from top of head |
| Oversized Amount | 0.020 IN |
| Part Description | Engine Piston |
| Bore Diameter | 101.6 MM |
| Grade Type | Premium |
| Piston Pin Outside Diameter | 24.773 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00614046897281 |
Part Interchanges
Fits Vehicles
- Ford F-150 (1975-1976)
- Ford F-500 (1975-1976)
- Ford F-350 (1968-1976)
- Ford F-250 (1968-1976)
- Ford F-100 (1968-1976)
- Ford Custom (1971)
- Mercury Park Lane (1966-1967)
- Mercury Monterey (1966-1967)
- Mercury Montclair (1966-1967)
- Mercury Marquis (1967)
- Mercury Marauder (1966-1967)
- Mercury Commuter (1966-1967)
- Mercury Colony Park (1966-1967, 1971)
- Mercury Brougham (1967)
- Ford Ranchero (1968-1969)
- Ford Ranch Wagon (1971)
- Ford P-350 (1968-1974)
- Ford M-400 (1971-1973)
- Ford LTD (1971)
- Ford Galaxie 500 (1971)
- Ford Custom 500 (1971)
- Ford Country Squire (1971)
- Ford Country Sedan (1971)
