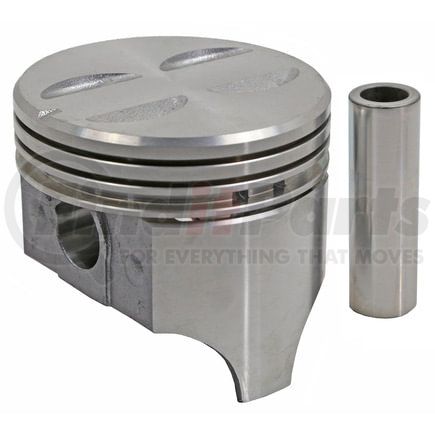

Sealed Power 295P - Sealed Power 295P Engine Piston Set
- Part Number
- 295P
- Manufacturer
- SEALED POWER
- Description
-
Sealed Power 295P Engine Piston Set
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
SEALED POWER part description
Product Description
Engine Piston Set
Application Summary
1970-1968 CKR V8 307CI 5.0L Chevrolet; 1973-1968 GM V8 307CI 5.0L Chevrolet; 1973-1968 GMT L/D V8 307CI 5.0L Chevrolet; 1970-1968 GMT M/D V8 307CI 5.0L Chevrolet; OMC V8 307CI 5.0L Chevrolet
Features & Benefits
- Cast with FM132 Eutectic proprietary alloy
- Performance & dependability of original equipment pistons
- High quality aluminum
- Utilizes ISO & QS certified manufacturing
- Meets or exceeds OEM specifications
Product Attributes
| Oversized | No |
| Top Compression Ring Thickness | 0.0781 IN |
| Second Compression Ring Thickness | 0.0781 IN |
| Oil Ring Thickness | 0.1875 IN |
| Piston Pin Outside Diameter | 0.9275 IN |
| Piston Pin Outside Diameter | 23.559 MM |
| Assembly Lubricant Included | No |
| Bore Diameter | 3.8750 IN |
| Bore Diameter | 98.4 MM |
| Piston Material | Cast Aluminum |
| 9607 | 1.655 IN |
| Head Illustration | 26 |
| Head Type | Flat Head w/4 valve reliefs |
| Minimum Clearance | 0.001 @ 2.510 from top of head |
| Part Description | Engine Piston Set |
| Pin Offset (Inch) | 0.06 |
| Pin Offset (MM) | 1.524 |
Additional Information
| Country of Origin (Primary) | IN |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00614046899445 |
Part Interchanges
- Badger P560
- Badger P560-STD
- ITM Engine Components RP2581
- General Motors 3911076
- General Motors 3923294
- General Motors 3927120
- General Motors 6271087
- General Motors 3911084
- General Motors 3923295
- General Motors 6271086
- TRW Steering and Suspension Parts L3023F
- Clevite 91438
- Clevite TC1737
- Enginetech P1540
- Silvolite 1438
- Ertel 947P
- Mcquay-Norris P2000AX
- Mcquay-Norris P2151AX
- Checker 09094
- Zollner 8095
- Z8356 STD
- Zollner Z8356
- Dana Commercial Vehicle Service Parts 1737P
- Dana Commercial Vehicle Service Parts 2241753
- Dana Commercial Vehicle Service Parts 224-1737
- Dana Commercial Vehicle Service Parts TC1737
- Badger P560STD
- Sealed Power 8438P
- Zollner Z8356STD
- Dana Commercial Vehicle Service Parts 2241737
Fits Vehicles
- Chevrolet Townsman (1969, 1971-1972)
- Chevrolet P30 Van (1968-1969, 1973)
- Chevrolet P20 Van (1968-1969, 1973)
- Chevrolet Malibu (1973)
- Chevrolet Laguna (1973)
- Chevrolet Kingswood (1969, 1971-1972)
- Chevrolet K30 Pickup (1968-1973)
- Chevrolet K20 Suburban (1968-1973)
- Chevrolet K20 Pickup (1968-1973)
- Chevrolet K10 Suburban (1968-1973)
- Chevrolet K10 Pickup (1968-1973)
- Chevrolet Impala (1968-1969, 1971-1973)
- Chevrolet G20 Van (1968-1973)
- Chevrolet G10 Van (1968-1973)
- Chevrolet El Camino (1968-1973)
- Chevrolet Chevy II (1968)
- Chevrolet Chevelle (1968-1973)
- Chevrolet Caprice (1968-1969, 1971-1973)
- Chevrolet Camaro (1969-1973)
- Chevrolet C30 Pickup (1968-1973)
- Chevrolet C20 Suburban (1968-1973)
- Chevrolet C20 Pickup (1968-1973)
- Chevrolet C10 Suburban (1968-1973)
- Chevrolet C10 Pickup (1968-1973)
- Chevrolet Brookwood (1969, 1971-1972)
- Chevrolet Blazer (1969-1973)
- Chevrolet Biscayne (1968)
- Chevrolet Bel Air (1968)
- Checker Marathon (1968)
- Chevrolet Estate (1969-1970)
- Pontiac Strato-Chief (1968-1970)
- Pontiac Parisienne (1968-1970)
- Pontiac Laurentian (1968-1969)
- Pontiac Beaumont (1968-1969)
- Chevrolet Nova (1969-1973)
- Pontiac Acadian (1968-1971)
- Pontiac Ventura (1971-1973)
- GMC Sprint (1971-1973)
- GMC P35/P3500 Van (1968-1973)
- GMC P25/P2500 Van (1968-1973)
- GMC K35/K3500 Pickup (1968-1973)
- GMC K25/K2500 Suburban (1968-1973)
- GMC K25/K2500 Pickup (1968-1973)
- GMC K15/K1500 Suburban (1968-1973)
- GMC K15/K1500 Pickup (1968-1973)
- GMC Jimmy (1970-1973)
- GMC G35/G3500 Van (1970-1973)
- GMC G25/G2500 Van (1968-1973)
- GMC G15/G1500 Van (1968-1973)
- GMC C35/C3500 Pickup (1968-1973)
- GMC C25/C2500 Suburban (1968-1973)
- GMC C25/C2500 Pickup (1968-1973)
- GMC C15/C1500 Suburban (1968-1973)
- GMC C15/C1500 Pickup (1968-1973)
