Sealed Power 411NP30 - Sealed Power 411NP 30 Engine Piston Set
- Part Number
- 411NP30
- Manufacturer
- SEALED POWER
- Description
-

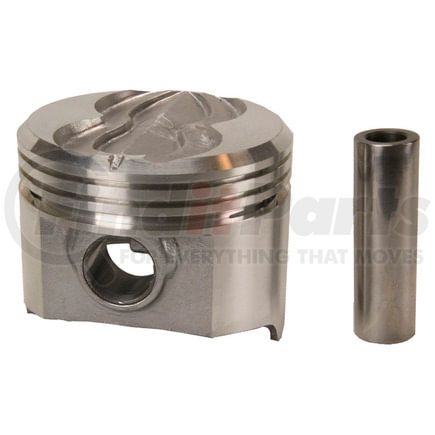

Sealed Power 411NP 30 Engine Piston Set
details
$39192
Package Price for 8 Units
@ $48.99 per unit
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
SEALED POWER part description
Product Description
Engine Piston Set
Features & Benefits
- Cast with FM132 Eutectic proprietary alloy
- Performance & dependability of original equipment pistons
- High quality aluminum
- Utilizes ISO & QS certified manufacturing
- Meets or exceeds OEM specifications
Product Attributes
| Oversized | Yes |
| Top Compression Ring Thickness | 0.0781 IN |
| Second Compression Ring Thickness | 0.0781 IN |
| Oil Ring Thickness | 0.1875 IN |
| Piston Pin Outside Diameter | 0.9804 IN |
| Assembly Lubricant Included | No |
| Bore Diameter | 4.1210 IN |
| Piston Material | Cast Aluminum |
| 9607 | 1.700 IN |
| Head Illustration | 6 |
| Head Type | Flat Head w/4 valve reliefs - 7.6:1 C.R. |
| Minimum Clearance | 0.0015 @ 2.670 from top of head |
| Oversized Amount | 0.030 IN |
| Part Description | Engine Piston |
| Pin Offset (Inch) | 0.062 |
| Pin Offset (MM) | 1.575 |
| Bore Diameter | 104.67 MM |
| Grade Type | Premium |
| Piston Pin Outside Diameter | 24.902 MM |
Additional Information
| Country of Origin (Primary) | IN |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00724956350728 |
Part Interchanges
- 411NP 30
- Badger P587-030
- General Motors 497037
- TRW Steering and Suspension Parts L3035F30
- Clevite TC1670.030
- Clevite 9-1526.030
- 1526.030
- Ertel 1064P30
- Z8358 030
- Dana Commercial Vehicle Service Parts 224-1670.030
- Dana Commercial Vehicle Service Parts TC1670.030
- Badger P587030
- Silvolite 1526030
- Clevite 91526030
- Clevite TC1670030
- Sealed Power 8526P30
- Zollner Z8358030
- Dana Commercial Vehicle Service Parts 2241670030
- Dana Commercial Vehicle Service Parts TC1670030
Fits Vehicles
- Pontiac Grand LeMans (1975-1977)
- Oldsmobile Delta 88 (1975)
- Oldsmobile Custom Cruiser (1975)
- Oldsmobile 98 (1975)
- Pontiac Tempest (1968-1970)
- Pontiac Laurentian (1967-1974, 1976)
- Pontiac Executive (1967-1970)
- Pontiac Parisienne (1967-1974, 1976)
- Pontiac LeMans (1968-1977)
- Pontiac GTO (1967-1973)
- Pontiac Grandville (1972-1975)
- Pontiac Grand Safari (1971-1978)
- Pontiac Grand Prix (1967-1977)
- Pontiac Grand Am (1973-1975)
- Pontiac Firebird (1967-1979)
- Pontiac Catalina (1967-1978)
- Pontiac Bonneville (1967-1978)
- Buick LeSabre (1975)
