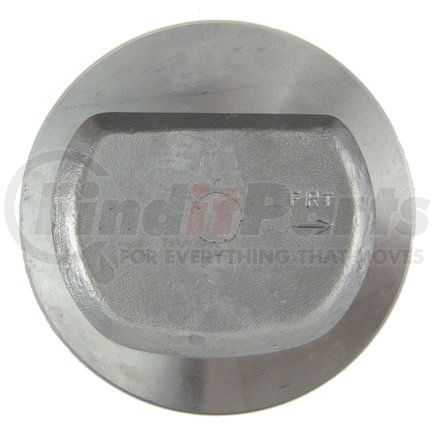

Sealed Power H896CP - Sealed Power H896CP Engine Piston
- Part Number
- H896CP
- Manufacturer
- SEALED POWER
- Description
-
Sealed Power H896CP Engine Piston
details
$24996
Package Price for 4 Units
@ $62.49 per unit
Limited Availability
Pay over 3-12 months with
. Learn more
. Learn more
SEALED POWER part description
Product Description
Engine Piston
Features & Benefits
- Helps improve cylinder sealing for less blow-by
- Retains standard ring gaps in top groove
- DUROSHIELD(R) skirt-coated piston
- DUROSHIELD® skirt-coated piston
- Moly-graphite coating extends engine life
- Reduces friction for higher fuel economy
- Prevents damage from inadequate lubrication on start-up
Product Attributes
| Oversized | No |
| Top Compression Ring Thickness | 0.0781 IN |
| Second Compression Ring Thickness | 0.0781 IN |
| Oil Ring Thickness | 0.1875 IN |
| Piston Pin Outside Diameter | 0.9279 IN |
| Piston Head Type | Recessed |
| Assembly Lubricant Included | No |
| Cylinder Bore Diameter | 4.0000 IN |
| Piston Material | Hypereutectic |
| 9607 | 1.625 IN |
| Head Illustration | 12 |
| Head Type | Recessed Head .140 deep x 1.610 Radius |
| Minimum Clearance | See Piston Fitting Information on carton label |
| Part Description | Engine Piston |
| Pin Offset (Inch) | 0.04 |
| Pin Offset (MM) | 1.016 |
| Grade Type | Premium |
| Piston Pin Outside Diameter | 23.569 MM |
Additional Information
| Country of Origin (Primary) | IN |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00614046785267 |
Part Interchanges
