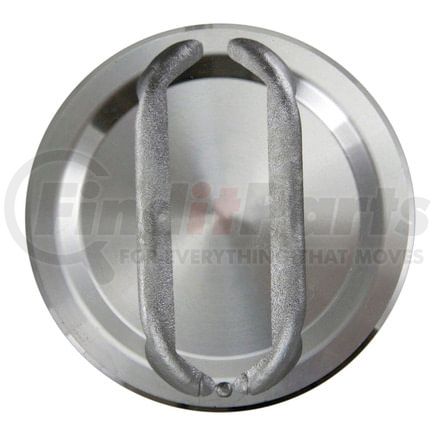

Sealed Power H580CP40 - Sealed Power H580CP 40 Engine Piston Set
- Part Number
- H580CP40
- Manufacturer
- SEALED POWER
- Description
-
Sealed Power H580CP 40 Engine Piston Set
details
$20792
Package Price for 8 Units
@ $25.99 per unit
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
SEALED POWER part description
Product Description
Engine Piston Set
Features & Benefits
- Helps improve cylinder sealing for less blow-by
- Retains standard ring gaps in top groove
- DUROSHIELD(R) skirt-coated piston
- DUROSHIELD® skirt-coated piston
- Moly-graphite coating extends engine life
- Reduces friction for higher fuel economy
- Prevents damage from inadequate lubrication on start-up
Product Attributes
Oversized | Yes |
Top Compression Ring Thickness | 0.0781 IN |
Second Compression Ring Thickness | 0.0781 IN |
Oil Ring Thickness | 0.1875 IN |
Piston Pin Outside Diameter | 0.9275 IN |
Assembly Lubricant Included | No |
Bore Diameter | 4.0000 IN |
Piston Material | Hypereutectic |
9607 | 1.550 IN |
Head Illustration | 187 |
Head Type | Recessed Head .185 deep x 3.300 dia. w/2 valve reliefs; DUROSHIELD~ skirt coated piston |
Minimum Clearance | See Piston Fitting Information on carton label |
Oversized Amount | 0.040 IN |
Part Description | Engine Piston |
Pin Offset (Inch) | 0.06 |
Pin Offset (MM) | 1.524 |
Pin Type | P |
Weight W Pin Gram | 00710.+/- 00. |
Bore Diameter | 101.6 MM |
Grade Type | Premium |
Piston Pin Outside Diameter | 23.559 MM |
Additional Information
Country of Origin (Primary) | IN |
Canadian Harmonizing Tariff Code | 8409910010 |
Harmonized Tariff Code (Schedule B) | 8409915085 |
Harmonized Tariff Code (HTS) | 8409915085 |
UPC | 00614046627413 |
Part Interchanges
- Badger P600-040
- TRW Steering and Suspension Parts L3084F40
- Clevite 9-1487.040
- 1487.040
- Ertel 1331P40
- Z8101D 040
- ZH8269C 040
- Dana Commercial Vehicle Service Parts 224-2745.040
- Dana Commercial Vehicle Service Parts 224-2805.040
- Dana Commercial Vehicle Service Parts TC2745A.040
- Dana Commercial Vehicle Service Parts 224-1845.040
- Dana Commercial Vehicle Service Parts 224-2801.040
- Dana Commercial Vehicle Service Parts TC2745.040
- Badger P600040
- Silvolite 1487040
- Clevite 91487040
- Sealed Power 9148P40
- Zollner Z8101D040
- Zollner ZH8269C040
- Dana Commercial Vehicle Service Parts 2241845040
- Dana Commercial Vehicle Service Parts 2242745040
- Dana Commercial Vehicle Service Parts 2242801040
- Dana Commercial Vehicle Service Parts 2242805040
- Dana Commercial Vehicle Service Parts TC2745040
- Dana Commercial Vehicle Service Parts TC2745A040
Fits Vehicles
- GMC P3500 (1991-1995)
- GMC G3500 (1991-1995)
- GMC C7000 (1979)
- GMC P6000 (1984-1990)
- Chevrolet P60 (1983-1990)
- GMC B6000 (1980-1990)
- Chevrolet B60 (1980-1990)
- Chevrolet C70 (1979, 1986)
- GMC C6000 (1979-1990)
- GMC C5000 (1979-1990)
- Chevrolet C60 (1972-1990)
- Chevrolet C50 (1972-1990)
- Chevrolet P30 (1991-1995)
- Chevrolet G30 (1991-1995)
