Sealed Power H597DCP - Sealed Power H597DCP Engine Piston Set
- Part Number
- H597DCP
- Manufacturer
- SEALED POWER
- Description
-

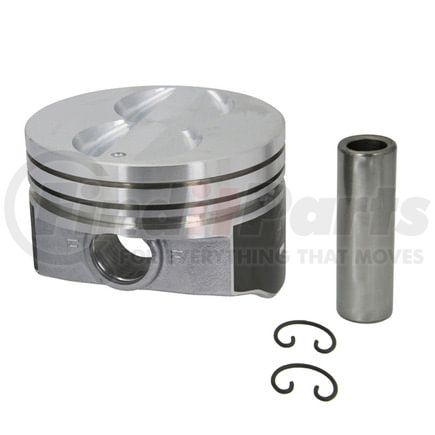

Sealed Power H597DCP Engine Piston Set
details
$26392
Package Price for 8 Units
@ $32.99 per unit
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
SEALED POWER part description
Product Description
Engine Piston Set
Features & Benefits
- Hypereutectic
- Made w/exclusive FM425 material for excellent strength & scuff resistance - allows tighter bore and improves sealing for less blow-by
- Sophisticated "barrel" profiles help optimize oil wedge between skirt and wall.
- Piston skirts protected by next-gen DUROSHIELD(R) coating.
- Piston skirts protected by next-gen DUROSHIELD® coating.
- TACTM ring groove geometry
- Weight matched to +/- 2 grams.
Product Attributes
| Oversized | No |
| Top Compression Ring Thickness | 2.00 MM |
| Second Compression Ring Thickness | 1.50 MM |
| Oil Ring Thickness | 4.00 MM |
| Assembly Lubricant Included | No |
| Bore Diameter | 4.0000 IN |
| Piston Material | Hypereutectic |
| 9607 | 1.550 IN |
| Head Illustration | 26 |
| Head Type | Flat Head w/4 valve reliefs; DUROSHIELD~ skirt coated piston |
| Part Description | Engine Piston |
| Pin Type | P or F |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | IN |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00019826500823 |
Part Interchanges
Fits Vehicles
- Oldsmobile Custom Cruiser (1992)
- Pontiac Firebird (1990-1997)
- Chevrolet Commercial Chassis (1991-1994)
- Chevrolet Impala (1994-1996)
- Chevrolet Corvette (1990-1996)
- Chevrolet Caprice (1990-1996)
- Chevrolet Camaro (1990-1997)
- Cadillac Commercial Chassis (1992-1996)
- Cadillac Brougham (1990-1992)
- Cadillac Fleetwood (1993-1996)
- Buick Commercial Chassis (1992-1996)
- Buick Roadmaster (1992-1996)
