SEALED POWER part description

Product Description

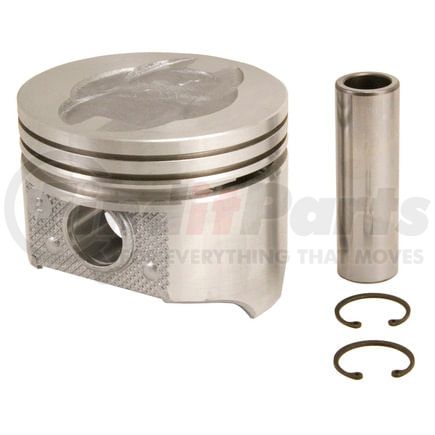

Engine Piston Set

Features & Benefits

  • Cast with FM132 Eutectic proprietary alloy
  • Performance & dependability of original equipment pistons
  • High quality aluminum
  • Utilizes ISO & QS certified manufacturing
  • Meets or exceeds OEM specifications

Product Attributes

Oversized No
Top Compression Ring Thickness 0.0781 IN
Second Compression Ring Thickness 0.0781 IN
Oil Ring Thickness 0.1875 IN
Piston Pin Outside Diameter 0.9753 IN
Assembly Lubricant Included No
Bore Diameter 4.1300 IN
Piston Material Cast Aluminum
9607 1.665 IN
Head Illustration 31
Head Type Recessed Head .120 deep - 10.2:1 C.R.
Minimum Clearance 0.0015 @ 2.570 from top of head
Part Description Engine Piston
Pin Offset (Inch) 0.06
Pin Offset (MM) 1.524
Bore Diameter 104.9 MM
Grade Type Premium
Piston Pin Outside Diameter 24.773 MM

Additional Information

Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8409910010
Harmonized Tariff Code (Schedule B) 8409915085
Harmonized Tariff Code (HTS) 8409915085
UPC 00724956346516

Part Interchanges

Fits Vehicles

  • Ford Custom (1966-1970)
  • Mercury Park Lane (1966-1968)
  • Mercury Monterey (1966-1970)
  • Mercury Montego (1968-1969)
  • Mercury Montclair (1966-1968)
  • Mercury Marquis (1967-1970)
  • Mercury Marauder (1966-1970)
  • Mercury Cyclone (1968-1969)
  • Mercury Cougar (1968-1970)
  • Mercury Commuter (1966-1968)
  • Mercury Comet (1968-1969)
  • Mercury Colony Park (1966-1970)
  • Mercury Brougham (1967)
  • Ford Torino (1968-1970)
  • Ford Thunderbird (1966-1967)
  • Ford Ranchero (1969)
  • Ford Ranch Wagon (1966-1970)
  • Ford Mustang (1967-1970)
  • Ford LTD (1966-1970)
  • Ford Galaxie 500 (1966-1970)
  • Ford Galaxie (1966-1967)
  • Ford Fairlane (1968-1970)
  • Ford Custom 500 (1967-1970)
  • Ford Country Squire (1966-1970)
  • Ford Country Sedan (1966-1970)
