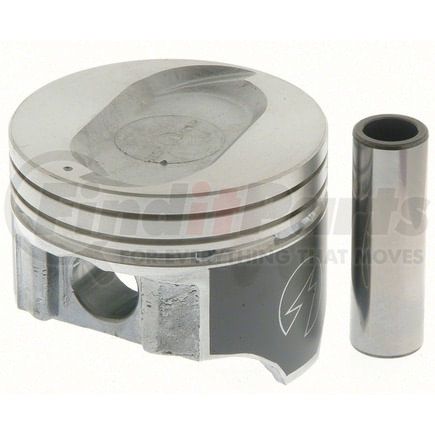

Name: Sealed Power H582CP 30 "Speed Pro" Engine Piston Cast Set
SKU: h582cp30
Price: 411.92 USD
Availability: InStock

SEALED POWER part description

Product Description

Engine Piston Set

Application Summary

1988-1991 Ford E-250 Econoline Club Wagon (Liter: 7.5 & Engine(ci): 460 & Cylinder: 8 & Block: V & Bore(in): 4.36 & Bore(mm): 110.7 & Stroke(in): 3.85 & Stroke(mm): 97.8); 1988-1993 Ford E-350 Econoline (Liter: 7.5 & Engine(ci): 460 & Cylinder: 8 & Block: V & Bore(in): 4.36 & Bore(mm): 110.7 & Stroke(in): 3.85 & Stroke(mm): 97.8); 1988-1993 Ford E-350 Econoline Club Wagon (Liter: 7.5 & Engine(ci): 460 & Cylinder: 8 & Block: V & Bore(in): 4.36 & Bore(mm): 110.7 & Stroke(in): 3.85 & Stroke(mm): 97.8); 1988-1993 Ford F Super Duty (Liter: 7.5 & Engine(ci): 460 & Cylinder: 8 & Block: V & Bore(in): 4.36 & Bore(mm): 110.7 & Stroke(in): 3.85 & Stroke(mm): 97.8); 1988-1993 Ford F-250 (Liter: 7.5 & Engine(ci): 460 & Cylinder: 8 & Block: V & Bore(in): 4.36 & Bore(mm): 110.7 & Stroke(in): 3.85 & Stroke(mm): 97.8); 1988-1993 Ford F-350 (Liter: 7.5 & Engine(ci): 460 & Cylinder: 8 & Block: V & Bore(in): 4.36 & Bore(mm): 110.7 & Stroke(in): 3.85 & Stroke(mm): 97.8); 1988-1993 Ford F53 (Liter: 7.5 & Engine(ci): 460 & Cylinder: 8 & Block: V & Bore(in): 4.36 & Bore(mm): 110.7 & Stroke(in): 3.85 & Stroke(mm): 97.8)

Features & Benefits

Exclusive higher-strength FM-425 alloy with 16.5 percent silicon finely dispersed throughout the material
Sophisticated "barrel" profiles help optimize oil wedge between skirt and wall.
Piston skirts protected by next-gen DUROSHIELD(R) coating.
TACTM ring groove geometry
Weight matched to +/- 2 grams.
Machined valve reliefs and circlip grooves; LR-63 lock rings for floated applications

Product Attributes

Oversized	Yes
Top Compression Ring Thickness	0.0781 IN
Second Compression Ring Thickness	0.0781 IN
Oil Ring Thickness	0.1875 IN
Assembly Lubricant Included	No
Bore Diameter	4.390 IN
Piston Material	Hypereutectic
9607	1.752 IN
Head Illustration	44
Head Type	Oblong Recessed Head .065 deep - 8.9:1 C.R. DUROSHIELD skirt coated piston.
Minimum Clearance	See Piston Fitting Information on carton label
Oversize Inch	.030
Part Description	Engine Piston
Weight W Pin Gram	00986.+/- 00.

Additional Information

Country of Origin (Primary)	IN
Canadian Harmonizing Tariff Code	8409910010
Harmonized Tariff Code (HTS)	8409915085
UPC	00614046227965

Part Interchanges

Ertel 1264P30

Speed-Pro® is the go-to brand not only for racers and performance enthusiasts but also for those who are cruising down the road day in day out. With its engineering expertise, advanced technologies, and industry-leading manufacturing facilities and techniques, Speed-Pro sets the bar higher for other manufacturers of pistons, engine bearing parts, and performance engine components. The engine solutions from Speed-Pro are meticulously designed and crafted to boost horsepower production and make engine rebuild an easy feat. Since its establishment, this brand has continuously improved and refined its operations and quality control measures to maintain high quality standards and satisfy customers’ requirements and demands.

Fits Vehicles

Ford F-250 (1988-1993)
Ford F53 (1988-1993)
Ford F-350 (1988-1993)
Ford F Super Duty (1988-1993)
Ford E-350 Econoline Club Wagon (1988-1993)
Ford E-250 Econoline Club Wagon (1988-1991)
Ford E-350 Econoline (1988-1993)
