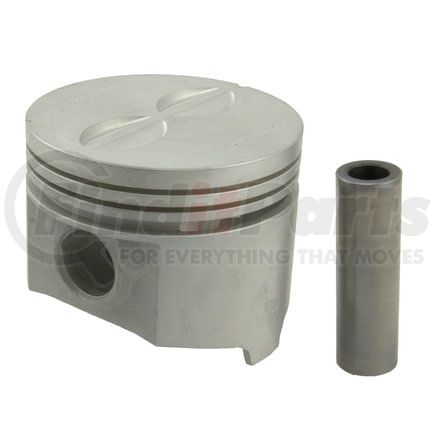

Sealed Power L-2262F 40 - "Speed Pro" POWERFORGED Engine Piston Set
- Part Number
- L-2262F 40
- Manufacturer
- SEALED POWER
- Description
-
"Speed Pro" POWERFORGED Engine Piston Set
details
$79592
Package Price for 8 Units
@ $99.49 per unit
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
SEALED POWER part description
Product Description
Engine Piston Set
Application Summary
1967-1973 Pontiac GTO; 1967-1974 Pontiac Laurentian; 1967-1970 Pontiac Executive; 1967-1974 Pontiac Bonneville; 1967-1974 Pontiac Catalina; 1967-1974 Pontiac Firebird; 1973-1974 Pontiac Grand Am; 1967-1974 Pontiac Grand Prix; 1971-1974 Pontiac Grand Safari; 1972-1974 Pontiac Grandville; 1968-1974 Pontiac LeMans; 1967-1974 Pontiac Parisienne; 1968-1970 Pontiac Tempest
Features & Benefits
- Forged under 3,000 tons of force.
- Fully updated skirt profiles
- Exclusive DUROSHIELD(R) skirt coating. DUROSHIELD(R) provides scuff resistance, reduced bore clearances and enhanced ring sealing.
- SPEED-PRO(R) POWERFORGED(R) pistons are built to stringent specifications with a precision CNC-machined dome and skirts and microfinished ring grooves.
- The manufacturing process ensures that piston weights within a boxed set will not vary more than 4 grams and that skirt sizes are matched to within 0.016mm (0.0006") per set.
- Machined valve reliefs and circlip grooves; LR-63 lock rings for floated applications
Product Attributes
| Oversized | Yes |
| Top Compression Ring Thickness | 0.0781 IN |
| Second Compression Ring Thickness | 0.0781 IN |
| Oil Ring Thickness | 0.1875 IN |
| Assembly Lubricant Included | No |
| Bore Diameter | 4.160 IN |
| Piston Material | POWERFORGED(R) |
| 9607 | 1.714 IN |
| Dome Volume CC | -6.7 |
| Head Illustration | 54 |
| Head Type | Flat, 4 reliefs; DUROSHIELD skirt coated piston |
| Lock Ring | N/R |
| Minimum Clearance | .0020 |
| Oversize Inch | .040 |
| Part Description | Engine Piston |
| Pin Diameter (Inch) | 0.980 |
| Pin Type | P |
| Pin Weight Gram | 194 |
| Weight W Pin Gram | 803 |
| Weight w/o Pin Gram | 609 |
Additional Information
| Country of Origin (Primary) | IN |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00087674132169 |
Part Interchanges
Speed-Pro® is the go-to brand not only for racers and performance enthusiasts but also for those who are cruising down the road day in day out. With its engineering expertise, advanced technologies, and industry-leading manufacturing facilities and techniques, Speed-Pro sets the bar higher for other manufacturers of pistons, engine bearing parts, and performance engine components. The engine solutions from Speed-Pro are meticulously designed and crafted to boost horsepower production and make engine rebuild an easy feat. Since its establishment, this brand has continuously improved and refined its operations and quality control measures to maintain high quality standards and satisfy customers’ requirements and demands.Fits Vehicles
- Pontiac Tempest (1968-1970)
- Pontiac Executive (1967-1970)
- Pontiac Laurentian (1967-1974)
- Pontiac Parisienne (1967-1974)
- Pontiac Grandville (1972-1974)
- Pontiac Grand Am (1973-1974)
- Pontiac LeMans (1968-1974)
- Pontiac GTO (1967-1973)
- Pontiac Grand Safari (1971-1974)
- Pontiac Grand Prix (1967-1974)
- Pontiac Firebird (1967-1974)
- Pontiac Catalina (1967-1974)
- Pontiac Bonneville (1967-1974)
