A-1 CARDONE part description

Product Description

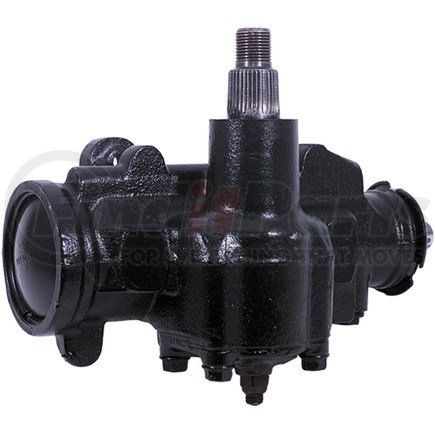

Steering Gear

Application Summary

Ford Country Sedan 1969-65, Country Squire 1969-67, Custom 1969-65, Custom 500 1969-65, Elite 1976-75, Galaxie 1967-65, Galaxie 500 1969-65, Gran Torino 1976-72, LTD 1969-67, LTD II 1979-77, Mustang 1973-71, Ranch Wagon 1969-65, Ranchero 1979-72, Thunderbird 1979-77, Torino 1976-72; Mercury Colony Park 1965, Commuter 1965, Cougar 1979-71, Marauder 1965, Montclair 1965, Montego 1975, Monterey 1965, Park Lane 1965

Features & Benefits

  • 100% hydraulic testing measures for proper flow, leakage and performance to ensure perfect fit and function.
  • 100% new O-rings and lip seals ensure leak-free, long-lasting performance.
  • All critical components are tested to ensure product reliability.
  • Shafts are surfaced to precise specifications to eliminate premature seal wear and extend gear life.
  • Rust inhibitive "Cool Dip" finish is a penetrating dye that completely covers all exposed surfaces for a consistent, protective finish that will not crack, flake or peel.
  • As a remanufactured Original Equipment part, this unit guarantees a perfect vehicle fit.
  • Our remanufacturing process is earth-friendly, as it reduces the energy and raw material needed to make a new part by 80%.

Power Steering Gear, Steering Gear, Gear Box

Product Attributes

Color Black
Package Contents Gear; Instruction Sheet; Instruction Tag
Product Condition Remanufactured
Input Shaft Spline Count 31
Number of Mounting Holes 3
Hose Port Type Seat
Total Turns Lock to Lock 4.13
Pressure Port Thread Size 11/16-18
Return Port Thread Size 5/8-18
Pump Rotation Standard
Pitman Arm Included No
Input Shaft Type Splined;Grooved
Steering Box Type Power
E-waste No
Input Shaft Diameter (in) 0.875
Input Shaft Diameter (mm) 22.23
Output Shaft Diameter (mm) 21.95
Output Shaft Diameter (in) 0.864
Features and Benefits Shafts are surfaced to precise specifications to eliminate premature seal wear and extend gear life.
Hose Port Type Seat
465 22.225 MM
Input Shaft Diameter 0.875 IN
Input Shaft Spline Quantity 31
Mounting Hardware Included No
2313 31.75 MM
2313 1.25 IN
Output Shaft Spline Quantity 32
6523 21.95 MM
6523 0.864 IN
Power Assisted Yes
9605 17.45 MM
9605 0.687 IN
9604 11/16-18
9606 0.618 IN
9606 15.7 MM
9603 5/8-18
Total Turns Lock To Lock 4.13
Type Power
Splined Input Shaft Yes
FAQ_Q1 Should the power steering hoses be replaced?
FAA_A1 Hoses should be replaced if they appear brittle or if there are any kinks or leaks.
FAQ_Q2 What is the difference between a fast ratio and a slow ratio gear box?
FAA_A2 The difference is the orientation of the teeth on the pitman shaft and power piston. Variable teeth will have a faster ratio than non-variable teeth.
FAQ_Q3 How can I tell if my gear box is a standard or reverse rotation?
FAA_A3 In a standard rotation gear box, the input and pitman shaft rotate in the same direction. The shafts turn in opposite directions on a reverse rotation gear box.
FAQ_Q4 Can I adjust my original gear box if it has a lot of play?
FAA_A4 Not recommended. The preload is adjusted at the time of assembly. If excessive play is present, it’s due to wear of internal components. If adjustment is attempted, it could lead to binding.
Contains Electronic Components No
Does it require SDS No
Is Item A Chemical No
Is Or Contains A Battery No
Is Or Contains A Bulb No
Is Prop Sixty Five Affected No
Is the item CARB affected No

Additional Information

Remanufactured Part Y
Warranty Distance 36000
Warranty Distance UOM DH
Warranty Special UOM TX
Warranty Time 36
Warranty Time UOM MO
Country of Origin (Primary) MX
Harmonized Tariff Code (Schedule B) 8708948000
Harmonized Tariff Code (HTS) 8708945000
Canadian Harmonizing Tariff Code 8708949900
UPC 00082617026802

Fits Vehicles

  • Ford Custom (1965-1969)
  • Mercury Park Lane (1965)
  • Mercury Monterey (1965)
  • Mercury Montclair (1965)
  • Mercury Commuter (1965)
  • Mercury Marauder (1965)
  • Mercury Colony Park (1965)
  • Ford Galaxie 500 (1965-1969)
  • Ford Custom 500 (1965-1969)
  • Ford Mustang (1971-1973)
  • Ford Ranch Wagon (1965-1969)
  • Ford LTD (1967-1969)
  • Ford Galaxie (1965-1967)
  • Ford Country Squire (1967-1969)
  • Ford Country Sedan (1965-1969)
  • Mercury Cougar (1971-1979)
  • Mercury Montego (1975)
  • Ford Thunderbird (1977-1979)
  • Ford Torino (1972-1976)
  • Ford Ranchero (1972-1979)
  • Ford LTD II (1977-1979)
  • Ford Gran Torino (1972-1976)
  • Ford Elite (1975-1976)
