A-1 Cardone 73-2479F - Body Control Computer
- Part Number
- 73-2479F
- Manufacturer
- A-1 CARDONE
- Description
-

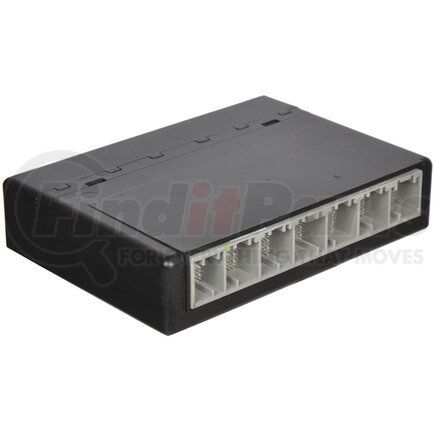

Body Control Computer
details
$18599
+$73.20 Core Deposit
Total price w/ core: $259.19
MSRP: $323.22
Save: $137.23
In stock
limited availability at this price!
A-1 CARDONE part description
Product Description
Body Control Computer
Application Summary
Buick Enclave 2012-08, Lucerne 2011-06; Cadillac CTS 2013-08, DTS 2011-06, SRX 2009-07; Chevrolet Caprice 2013-11, Captiva Sport 2013-12, Equinox 2009-07, Express 1500 2012-08, Express 2500 2012-08, Express 3500 2012-08, Express 4500 2012-09, Impala 2012-06, Monte Carlo 2007-06, Traverse 2012-09; GMC Acadia 2012-07, Savana 1500 2012-08, Savana 2500 2012-08, Savana 3500 2012-08, Savana 4500 2012-09; Hummer H2 2009-08; Pontiac G8 2009-08, Torrent 2009-07; Saturn Outlook 2010-07, Vue 2010-08; Suzuki XL-7 2009-07
Features & Benefits
- 100% re-soldering of critical components ensures superior electrical connections, prevents intermittent failures and extends product life.
- All modules are 100% tested with automated computerized test equipment to ensure functionality and reliability.
- Each unit comes loaded with the latest O.E. software calibration available, where applicable.
- On-car validation routines ensure that modules meet all form, fit, durability and performance requirements.
- As a remanufactured Original Equipment part, this unit guarantees a perfect vehicle fit.
- Our remanufacturing process is earth-friendly, as it reduces the energy and raw material needed to make a new part by 80%.
Body Control Computer, BCC, BCM, Body Control Module, Computer, Module, GEM, GEM Module
Product Attributes
Terminal Quantity | 22;19;21;24;23;18;24 |
Product Condition | Remanufactured |
Mounting Type | Snap in |
Housing Color | Black |
Module Housing Material | Plastic |
Removable Prom | No |
Connector Quantity | 7 |
E-waste | Yes |
Connector Shape | Rectangle |
Terminal Gender | Female |
Features and Benefits | Our remanufacturing process is earth-friendly, as it reduces the energy and raw material needed to make a new part by 80%. |
Flash Programming Required | Yes |
Flashable | Yes |
Housing Height (In) | 1.6 |
Connector Color | Gray |
Connector Gender | Female |
Connector Quantity | 7 |
Connector Shape | Rectangular |
Flash Programming Required | Yes |
Flashable | Yes |
Housing Color | Black |
Housing Height | 1.6 IN |
3730 | 40.64 MM |
Housing Length | 7.105 IN |
Housing Length | 180.47 MM |
Housing Material | Plastic |
Housing Width | 5.165 IN |
Housing Width | 131.19 MM |
Mounting Type | Snap in |
Programming Required | Yes |
Removable PROM | No |
Terminal Gender | Male |
Terminal Quantity | 180 |
Terminal Type | Pin |
Bolt on Mounting | No |
Is Item A Chemical | No |
Package Contents | Module; Instruction Sheet |
Contains Electronic Components | Circuit Board |
Does it require SDS | No |
Is Or Contains A Battery | No |
Is Or Contains A Bulb | No |
Is Prop Sixty Five Affected | No |
Is the item CARB affected | No |
FAQ_Q1 | What is a Body Control Module (BCM)? |
FAA_A1 | A body control module is an electronic control unit that monitors and controls various electronic accessories throughout the body of the vehicle. |
FAQ_Q2 | Are there different types of BCMs? |
FAA_A2 | Yes, there are several different types of BCMs. The BCM controls the main functions of the body; however there are some BCM types that have body control functions but were given different names because they may also include other specific functions. For example, Ford vehicles have central timer, general electronic and lighting control modules. Chrysler uses both “body control module” and “totally integrated power module” to describe their BCMs. GM has always called their BCM a “body control module.” |
FAQ_Q3 | What does a BCM control? |
FAA_A3 | BCMs control power accessories, courtesy lighting, central locking, remote keyless entry, passive start and entry, tire pressure monitoring and immobilizer systems. |
FAQ_Q4 | Do I need special tools to install the replacement BCM? |
FAA_A4 | Some BCMs require special tools to meet programming, relearn and installation requirements while others are plug and play and do not have any special installation procedures or requirements. The best practice when installing a BCM is to refer to a vehicle specific service manual for d proper module replacement procedures. |
FAQ_Q5 | Does the replacement BCM need programming? |
FAA_A5 | Most BCMs need to be programmed by the remanufacturer or a shop equipped with the proper tools. If the replacement BCM needs programming, it must be programmed with the latest operating software and vehicle calibrations. Failure to do so may result in a no-start situation or cause certain vehicle functions to operate incorrectly. The best practice when installing a BCM is to refer to a vehicle specific service manual for proper module replacement procedures. |
FAQ_Q6 | Does the BCM communicate with other modules? |
FAA_A6 | The BCM may communicate with other modules over a variety of protocols or buses, depending on the vehicle. There may be some other modules that a BCM interacts with over a local network for simpler functions. Some types of BCMs interact with other modules over several different protocols (Example: totally integrated power modules). |
FAQ_Q7 | Is the BCM part of the anti-theft system? |
FAA_A7 | The BCM is often part of an anti-theft / immobilizer system. Some vehicles have separate modules for theft-deterrent and immobilizer functions. |
Additional Information
Remanufactured Part | Y |
Warranty Distance | 18000 |
Warranty Distance UOM | DH |
Warranty Special UOM | TX |
Warranty Time | 12 |
Warranty Time UOM | MO |
Country of Origin (Primary) | US |
Harmonized Tariff Code (HTS) | 8543709860 |
Harmonized Tariff Code (Schedule B) | 8543709665 |
Canadian Harmonizing Tariff Code | 8543700000 |
UPC | 00082617917773 |
Part Interchanges
- Chevrolet 10382479
- Chevrolet 15093910
- Chevrolet 15299986
- Chevrolet 15880684
- Chevrolet 15921352
- Chevrolet 20815898
- Chevrolet 20864767
- Chevrolet 22860591
- Suzuki 22860591
- Buick 10382479
- Buick 15093910
- Buick 15880684
- Buick 15921352
- Buick 20815898
- Buick 22860591
- GMC 10382479
- GMC 15880684
- GMC 15921352
- GMC 20815898
- GMC 20864767
- GMC 22860591
- Cadillac 10382479
- Cadillac 15299986
- Cadillac 15880684
- Cadillac 15921352
- Cadillac 20815898
- Cadillac 22860591
- Hummer 10382479
- Hummer 15921352
- Saturn 10382479
- Saturn 15880684
- Saturn 15921352
- Saturn 20815898
- Saturn 22860591
- Pontiac 10382479
- Pontiac 15880684
- Pontiac 15921352
- Pontiac 22860591
- Chevrolet 15921352
- GMC 10382479
- GMC 15880684
- Pontiac 22860591
- GMC 20864767
- Chevrolet 15299986
- Cadillac 22860591
- GMC 20815898
- Buick 15921352
- GMC 15921352
- Chevrolet 22860591
- Chevrolet 20815898
- Saturn 15880684
- Buick 15093910
- Pontiac 10382479
- Cadillac 10382479
- Buick 10382479
- GMC 22860591
- Chevrolet 15880684
- Buick 15880684
- Cadillac 15299986
- Cadillac 15880684
- Buick 20815898
- Cadillac 20815898
- Saturn 10382479
- Suzuki 22860591
- Pontiac 15921352
- Saturn 22860591
- Chevrolet 15093910
- Hummer 15921352
- Hummer 10382479
- Buick 22860591
- Saturn 15921352
- Pontiac 15880684
- Saturn 20815898
- Cadillac 15921352
- Chevrolet 20864767
- Chevrolet 10382479
Fits Vehicles
- GMC Savana 4500 (2009-2012)
- Chevrolet Express 4500 (2009-2012)
- Chevrolet Captiva Sport (2012-2013)
- Chevrolet Caprice (2011-2013)
- Chevrolet Traverse (2009-2012)
- GMC Savana 3500 (2008-2012)
- Chevrolet Express 1500 (2008-2012)
- GMC Savana 1500 (2008-2012)
- Hummer H2 (2008-2009)
- Pontiac G8 (2008-2009)
- Saturn Vue (2008-2010)
- GMC Savana 2500 (2008-2012)
- Chevrolet Express 2500 (2008-2012)
- Cadillac CTS (2008-2013)
- Buick Enclave (2008-2012)
- Chevrolet Express 3500 (2008-2012)
- Saturn Outlook (2007-2010)
- Suzuki XL-7 (2007-2009)
- Chevrolet Equinox (2007-2009)
- GMC Acadia (2007-2012)
- Pontiac Torrent (2007-2009)
- Cadillac SRX (2007-2009)
- Buick Lucerne (2006-2011)
- Chevrolet Monte Carlo (2006-2007)
- Cadillac DTS (2006-2011)
- Chevrolet Impala (2006-2012)
A-1 Cardone Ind.® is a leading manufacturer and distributor of automotive parts and accessories, including master cylinders, clutches, calipers, and other braking system components. Its comprehensive range of products is made using the highest quality materials and the most advanced technology to ensure reliable performance, safety, and reliability. The company traces back its roots more than 35 years ago when Michael Cardone, Sr. remanufactures his first product: the windshield wiper motor. From then on, the name A-1 Cardone has been a go-to brand of automotive enthusiasts and fleet owners when it comes to new and remanufactured products that offer not just reliability but also long-lasting service.
