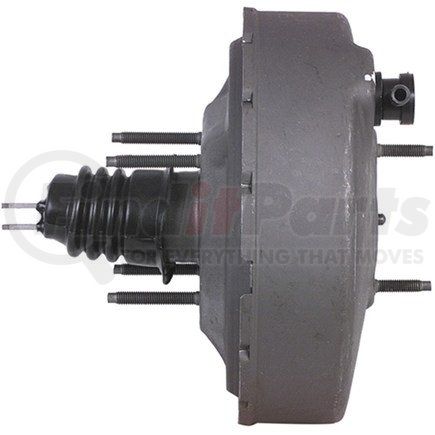

Name: A-1 Cardone 5474112 Power Brake Booster
SKU: 5474112
Price: 85.99 USD
Availability: InStock

A-1 CARDONE part description

Product Description

Power Brake Booster

Application Summary

Hyundai Scoupe 1992-91

Features & Benefits

100% O.E. quality seals, diaphragms and check valves are installed on every unit for like-new performance and reliability.
Exclusive rust-prohibitive finishing process extends unit life.
Master cylinder output rods are pre-adjusted (when included) for easier and faster installation.
New mounting nuts and washers ensure proper, hassle-free installation.
All units are 100% tested to ensure reliable performance.
Guaranteed fit and function.
Meets or exceeds O.E. performance.

Power Brake Booster, Booster, Vacuum Booster

Product Attributes

Color	Gray
Package Contents	Booster; Instruction Sheet
Product Condition	Remanufactured
Material	Steel
Master Cylinder Included	No
Brake Booster Diaphragm Style	Single
Master Cylinder Stud Thread Size	M8x1.25
E-waste	No
Diaphragm Diameter (in)	9.24
Diaphragm Diameter (mm)	234.65
Features and Benefits	Remanufactured to match O.E. performance.
Booster Type	Vacuum
Brake Pedal Rod Extension Included	No
Brake Service Grade	Regular
3914	234.65 MM
Diaphragm Diameter	9.238 IN
Diaphragm Type	Single
Gasket Or Seal Included	No
Housing Diameter	9.53 IN
1928	242.06 MM
Housing Material	Steel
Master Cylinder Included	No
9660	M8x1.25
Mounting Bracket Included	No
Mounting Hardware Included	No
9659	Yes
Stud Thread Size	M8x1.25
FAQ_Q1	What does a Brake booster do?
FAA_A1	A brake booster assists in pushing the master cylinder piston when the brakes are applied. This multiplies pedal force to decrease stopping distances.
FAQ_Q2	How much vacuum does a brake booster need?
FAA_A2	For proper functionality, a brake booster will need a consistent supply of 18-21 inches of vacuum.
FAQ_Q3	How can I test my brake booster for proper functionality?
FAA_A3	With the engine off, pump the brake pedal until it feels firm and hold. Then, start the engine and the pedal will sink slightly if the booster is operating properly.
FAQ_Q4	What causes multiple booster failure?
FAA_A4	Fuel and oil vapors can enter the vehicle’s PCV system. These vapors will prematurely deteriorate the brake booster’s internal diaphragm.
FAQ_Q5	Why do my brake lights remain illuminated after installing my replacement brake booster?
FAA_A5	After replacing a brake booster, it may be necessary to adjust the brake light switch. Some vehicles contain a one-time use brake light switch. In these cases, the brake light switch will need to be replaced.
FAQ_Q6	Can I use a brake booster from a different application?
FAA_A6	No, brake boosters are application specific. Most will have different master cylinder and firewall mounting spreads.
FAQ_Q7	What is brake pedal free play?
FAA_A7	Brake pedal free play is a measurement of how far the brake pedal moves before the master cylinder first begins engagement. Some vehicles will require an adjustment. Please refer to your vehicle’s service manual.
FAQ_Q8	Why is fluid present between my master cylinder and brake booster?
FAA_A8	This is due to a failing master cylinder piston seal. This will result in brake fluid entering and contaminating the brake booster. The master cylinder and brake booster will need to be replaced.
FAQ_Q9	Why do I have less than 18 inches of vacuum supplied to my brake booster?
FAA_A9	A common cause is a restricted vacuum hose. If the vacuum line is free flowing, there could be more extensive engine damage or wear. Engine vacuum also fluctuates based on altitude. Please refer to the O.E. specification for your vehicle.
FAQ_Q10	How can I identify my brake booster?
FAA_A10	The most common way to identify the brake booster is by the vehicle application. However, most brake boosters have a pedal rod identification number stamped on the end of the rod. This can helpful in identifying the correct replacement brake booster.
Contains Electronic Components	No
Does it require SDS	No
Is Item A Chemical	No
Is Or Contains A Battery	No
Is Or Contains A Bulb	No
Is Prop Sixty Five Affected	No
Is the item CARB affected	No

Additional Information

Remanufactured Part	Y
Warranty Distance	18000
Warranty Distance UOM	DH
Warranty Special UOM	TX
Warranty Time	12
Warranty Time UOM	MO
Country of Origin (Primary)	MX
Harmonized Tariff Code (HTS)	8413500080
Harmonized Tariff Code (Schedule B)	8413500080
Canadian Harmonizing Tariff Code	8413500090
UPC	00082617342421

Part Interchanges

Fits Vehicles

Hyundai Scoupe (1991-1992)
