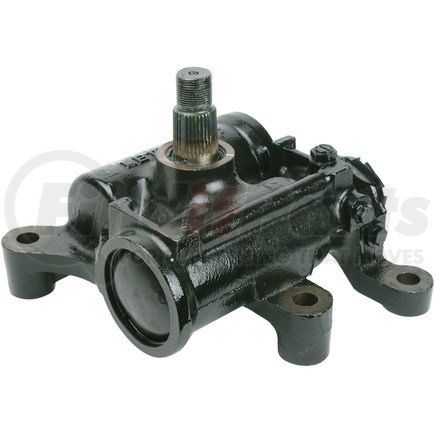

A-1 Cardone 277610 - Steering Gear
- Part Number
- 277610
- Manufacturer
- A-1 CARDONE
- Description
-
Steering Gear
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
A-1 CARDONE part description
Product Description
Steering Gear
Application Summary
Chevrolet B7 2002-93, C60 1990, C60 Kodiak 1996-90, C6500 Kodiak 2002-97, C70 1990, C70 Kodiak 1996-90, C7500 Kodiak 2002-97, P60 1996-92, P6000 1996-92; GMC B7 2002-93, C6000 1990, C6000 Topkick 1996-90, C6500 Topkick 2002-97, C7000 1990, C7000 Topkick 1996-90, C7500 Topkick 2002-97, P6000 1996-92, P6500 1996-92
Features & Benefits
- 100% hydraulic testing measures for proper flow, leakage and performance to ensure perfect fit and function.
- 100% new O-rings and lip seals ensure leak-free, long-lasting performance.
- All critical components are tested to ensure product reliability.
- Shafts are surfaced to precise specifications to eliminate premature seal wear and extend gear life.
- Rust inhibitive "Cool Dip" finish is a penetrating dye that completely covers all exposed surfaces for a consistent, protective finish that will not crack, flake or peel.
- As a remanufactured Original Equipment part, this unit guarantees a perfect vehicle fit.
- Our remanufacturing process is earth-friendly, as it reduces the energy and raw material needed to make a new part by 80%.
Power Steering Gear, Steering Gear, Gear Box
Product Attributes
| Color | Black |
| Package Contents | Gear; Instruction Sheet; Instruction Tag |
| Product Condition | Remanufactured |
| Input Shaft Spline Count | 31 |
| Number of Mounting Holes | 3 |
| Hose Port Type | Oring |
| Total Turns Lock to Lock | 5.81 |
| Pressure Port Thread Size | 16x1.5 |
| Return Port Thread Size | 20x1.5 |
| Pump Rotation | Reverse |
| Pitman Arm Included | No |
| Input Shaft Type | Single Flat;Whistle Notch |
| Steering Box Type | Power |
| E-waste | No |
| Input Shaft Diameter (in) | 0.875 |
| Input Shaft Diameter (mm) | 22.23 |
| Output Shaft Diameter (mm) | 30.73 |
| Output Shaft Diameter (in) | 1.21 |
| Features and Benefits | Shafts are surfaced to precise specifications to eliminate premature seal wear and extend gear life. |
| Hose Port Type | O-Ring |
| 465 | 22.225 MM |
| Input Shaft Diameter | 0.875 IN |
| Input Shaft Spline Quantity | 31 |
| Mounting Hardware Included | No |
| 2313 | 41.28 MM |
| 2313 | 1.63 IN |
| Output Shaft Spline Quantity | 32 |
| 6523 | 30.73 MM |
| 6523 | 1.21 IN |
| Power Assisted | Yes |
| 9605 | 0.62 IN |
| 9605 | 15.75 MM |
| 9604 | 16x1.5 |
| 9606 | 0.775 IN |
| 9606 | 19.69 MM |
| 9603 | 20x1.5 |
| Total Turns Lock To Lock | 5.81 |
| Type | Power |
| Splined Input Shaft | Yes |
| FAQ_Q1 | Should the power steering hoses be replaced? |
| FAA_A1 | Hoses should be replaced if they appear brittle or if there are any kinks or leaks. |
| FAQ_Q2 | What is the difference between a fast ratio and a slow ratio gear box? |
| FAA_A2 | The difference is the orientation of the teeth on the pitman shaft and power piston. Variable teeth will have a faster ratio than non-variable teeth. |
| FAQ_Q3 | How can I tell if my gear box is a standard or reverse rotation? |
| FAA_A3 | In a standard rotation gear box, the input and pitman shaft rotate in the same direction. The shafts turn in opposite directions on a reverse rotation gear box. |
| FAQ_Q4 | Can I adjust my original gear box if it has a lot of play? |
| FAA_A4 | Not recommended. The preload is adjusted at the time of assembly. If excessive play is present, it’s due to wear of internal components. If adjustment is attempted, it could lead to binding. |
| Contains Electronic Components | No |
| Does it require SDS | No |
| Is Item A Chemical | No |
| Is Or Contains A Battery | No |
| Is Or Contains A Bulb | No |
| Is Prop Sixty Five Affected | No |
| Is the item CARB affected | No |
Additional Information
| Remanufactured Part | Y |
| Warranty Distance | 36000 |
| Warranty Distance UOM | DH |
| Warranty Special UOM | TX |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Harmonized Tariff Code (HTS) | 8708945000 |
| Canadian Harmonizing Tariff Code | 8708949900 |
| UPC | 00082617622301 |
Part Interchanges
Fits Vehicles
- GMC P6000 (1992-1996)
- Chevrolet P60 (1992-1996)
- Chevrolet P6000 (1992-1996)
- GMC P6500 (1992-1996)
- GMC B7 (1993-2002)
- GMC C6500 Topkick (1997-2002)
- GMC C7500 Topkick (1997-2002)
- Chevrolet B7 (1993-2002)
- Chevrolet C6500 Kodiak (1997-2002)
- Chevrolet C7500 Kodiak (1997-2002)
- Chevrolet C70 (1990)
- GMC C6000 Topkick (1990-1996)
- Chevrolet C60 (1990)
- Chevrolet C70 Kodiak (1990-1996)
- GMC C7000 Topkick (1990-1996)
- GMC C6000 (1990)
- GMC C7000 (1990)
- Chevrolet C60 Kodiak (1990-1996)
