CENTRIC 123.44000 Part Description
Manufacturer
Product Description

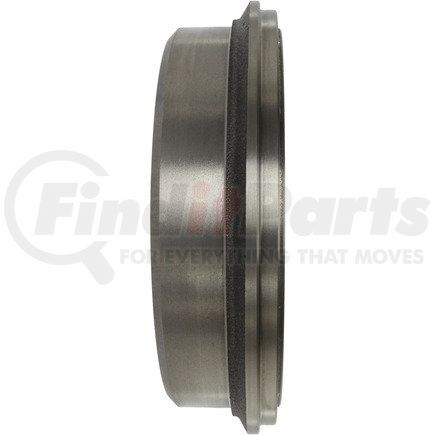

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
CENTRIC 123.44000 Specifications
Product Attributes
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Kgs | 7.273 |
| Weight [cntrc] Lbs | 16.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Hub Hole / Register [cntrc] Mm | 67.000 |
| Hub Hole / Register [cntrc] In | 2.638 |
| Height [cntrc] Mm | 78.000 |
| Height [cntrc] In | 3.071 |
| Friction Surface Width [cntrc] Mm | 66.500 |
| Friction Surface Width [cntrc] In | 2.618 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 256.000 MM |
| Maximum Brake Diameter (Discard) | 10.079 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 302.500 MM |
| Outside Diameter | 11.909 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 14.500 MM |
| Mounting Hole Diameter | 0.571 IN |
| Nominal Drum Diameter | 254.000 MM |
| Nominal Drum Diameter | 10.000 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890051749 |
CENTRIC 123.44000 Cross References
| Brand | Part Number |
|---|---|
| N/A | BD60360, BD61944, 0831321, E128-49-005, E127-49-005, 3598, 3523, BD3523, BD3598, 123.44000, 4243135030, 3523G, 3598G, 566, 100455, 4243135130, 4243135190, 4351039025, 140518, 140335, PDR0335, 207230, 207880, 6401220, 6401330, 6401441, 6401648, 1004, 969, DB4138, JBD118, JBD118E, D9112, D9340, E12749005, E12849005, 87144, 87428, 87482, X21814, X21608, 21043, 9112, 9112R, 9428, 9482, 9482R, 9112DGS, 9482DGS, 78-22000, 7822000, 8822000, 78822000, 36576000 |
| RAYBESTOS | 9112, 9112R, 9428, 9482, 9482R |
CENTRIC 123.44000 Fits Vehicles
- Toyota Hi-Lux (1972-1974)
- Toyota Pickup (1972-1983, 1985-1992)
