Centric 228.37085 - C-Tek Standard Drilled Brake Rotor
$7149
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

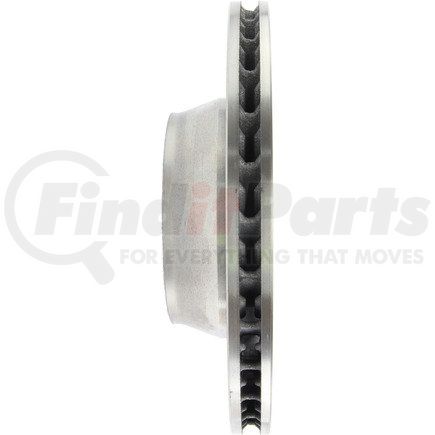

C-Tek Standard Drilled Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. G11 metallurgy. Drilled for increased bite; improved looks and better performance
Product Attributes
| Misc Holes [cntrc] | 6 |
| Disc Mounting [cntrc] | Floating / DIH |
| Hat Id [cntrc] In | 7.091 |
| Product Grade [cntrc] | Standard |
| Weight [cntrc] Kgs | 10.340 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Hat Id [cntrc] Mm | 180.100 |
| Vane Style [cntrc] | Curved |
| Weight [cntrc] Lbs | 22.800 |
| Stud/Lug Hole Diameter | 0.610 IN |
| Stud/Lug Hole Diameter | 15.500 MM |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 5.118 IN |
| Mounting Bolt Hole Circle Diameter | 130.000 MM |
| Center Hole Diameter | 3.858 IN |
| Center Hole Diameter | 98.000 MM |
| Bearings Included | No |
| Nominal Drum Diameter | 180.000 MM |
| Nominal Drum Diameter | 7.087 IN |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | X Drilled |
| ABS Tone Ring Included | No |
| Outside Diameter | 330.000 MM |
| Outside Diameter | 12.992 IN |
| Overall Height | 2.953 IN |
| Overall Height | 75.000 MM |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28.000 MM |
| Discard Thickness | 26.000 MM |
| Discard Thickness | 1.024 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890459569 |
Part Interchanges
Fits Vehicles
- Porsche Panamera (2014-2020)
- Porsche 911 (2011-2017, 2019-2021)
