CENTRIC part description

Product Description

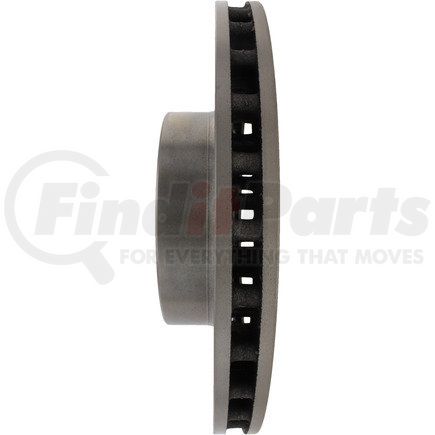

C-Tek Standard Brake Rotor

Features & Benefits

  • Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket

Product Attributes

California Proposition 65 Text [cntrc] WARNING: Cancer and Reproductive Harm
Disc Mounting [cntrc] Floating
Product Grade [cntrc] Standard
Misc Holes [cntrc] 2
Weight [cntrc] Lbs 18.750
Discard Thickness 1.024 IN
Discard Thickness 26.000 MM
Nominal Thickness 1.102 IN
Nominal Thickness 28.000 MM
Overall Height 63.200 MM
Overall Height 2.488 IN
Outside Diameter 312.200 MM
Outside Diameter 12.291 IN
ABS Tone Ring Included No
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Bearings Included No
Center Hole Diameter 61.100 MM
Center Hole Diameter 2.406 IN
Stud/Lug Hole Quantity 5
Stud/Lug Hole Diameter 15.600 MM
Stud/Lug Hole Diameter 0.614 IN

Additional Information

Harmonized Tariff Code (Schedule B) 8708300050
Harmonized Tariff Code (HTS) 8708305030
NAFTA Preference Criterion Code B
Country of Origin (Primary) CN
UPC 805890887485

Part Interchanges

Fits Vehicles

  • Renault Megane (2005-2008)
