CENTRIC part description

Product Description

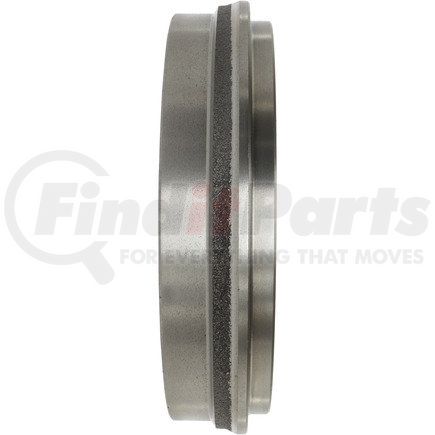

C-Tek Standard Brake Drum

Features & Benefits

  • Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket

Product Attributes

Misc Holes [cntrc] 2
Weight [cntrc] Kgs 4.659
Weight [cntrc] Lbs 10.250
Mounting Type [cntrc] Floating
Bolt Circle Diameter [cntrc] Mm 100.000
Bolt Circle Diameter [cntrc] In 3.937
Hub Hole / Register [cntrc] Mm 55.110
Hub Hole / Register [cntrc] In 2.170
Height [cntrc] Mm 51.800
Height [cntrc] In 2.039
Friction Surface Width [cntrc] Mm 41.150
Friction Surface Width [cntrc] In 1.620
Product Grade [cntrc] Standard
Maximum Brake Diameter (Discard) 201.000 MM
Maximum Brake Diameter (Discard) 7.913 IN
Bolt Hole Quantity 4
Outside Diameter 233.000 MM
Outside Diameter 9.173 IN
Outer Cooling Fins No
Mounting Hole Diameter 14.800 MM
Mounting Hole Diameter 0.583 IN
Nominal Drum Diameter 200.000 MM
Nominal Drum Diameter 7.874 IN

Additional Information

Harmonized Tariff Code (HTS) 8708305030
Harmonized Tariff Code (Schedule B) 8708300050
NAFTA Preference Criterion Code B
Country of Origin (Primary) CN
UPC 805890076308

Part Interchanges

CENTRIC 123.44040 Cross Reference

We have 1 alternatives for the 123.44040 by CENTRIC:

Fits Vehicles

  • Scion xA (2004-2006)
  • Toyota Yaris (2004-2006)
  • Scion xB (2004-2006)
  • Toyota Prius (2001-2003)
