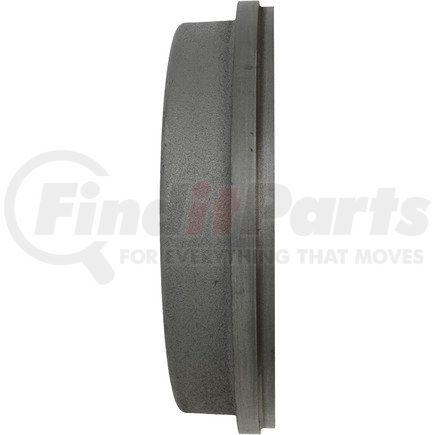

Centric 123.46000 - C-Tek Standard Brake Drum
$3399
MSRP: $36.38
Save: $2.39
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Kgs | 5.114 |
| Weight [cntrc] Lbs | 11.250 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Hub Hole / Register [cntrc] Mm | 90.000 |
| Hub Hole / Register [cntrc] In | 3.543 |
| Height [cntrc] Mm | 62.500 |
| Height [cntrc] In | 2.461 |
| Friction Surface Width [cntrc] Mm | 47.000 |
| Friction Surface Width [cntrc] In | 1.850 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 230.600 MM |
| Maximum Brake Diameter (Discard) | 9.079 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 270.000 MM |
| Outside Diameter | 10.630 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 13.000 MM |
| Mounting Hole Diameter | 0.512 IN |
| Nominal Drum Diameter | 228.600 MM |
| Nominal Drum Diameter | 9.000 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890051978 |
Part Interchanges
- 0832423
- BD60376
- E128-51-005
- E127-51-005
- 35010
- 3561
- BD35010
- 63 75 040
- MA180104
- 116803
- 35010G
- 3561G
- MB587937
- MA180105
- MB180104
- MB180105
- 100751
- 140349
- 140644
- PDR0349
- PDR0644
- 213000
- 203610
- 6401582
- 6401654
- 6401307
- 1001
- JBD140
- JBD140E
- D9105
- E12751005
- 87289
- 87321
- 87449
- 21047
- X21825
- BD1513
- 9449
- 9449R
- 9105R
- 9321
- 9105
- 9449DGS
- 9105DGS
- 8816000
- 78816000
- 36572000
CENTRIC 123.46000 Cross Reference
We have 3 alternatives for the 123.46000 by CENTRIC:
Fits Vehicles
- Mitsubishi Expo LRV (1992-1993)
- Mitsubishi Galant (1993-1998)
- Mitsubishi Expo (1992-1995)
- Plymouth Sapporo (1978-1983)
- Plymouth Colt (1976-1979, 1985-1994)
- Plymouth Arrow (1976-1980)
- Eagle Summit (1992-1995)
- Dodge Challenger (1978-1983)
- Dodge Colt (1974-1979, 1985-1991)
