CENTRIC part description

Product Description

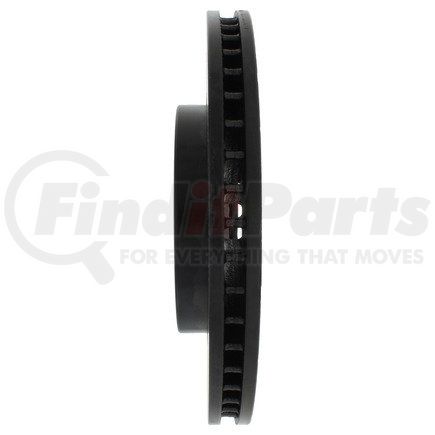

Centric Premium Brake Rotor

Features & Benefits

  • Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life

Product Attributes

Disc Mounting [cntrc] Floating
California Proposition 65 Text [cntrc] WARNING: Cancer and Reproductive Harm
Weight [cntrc] Kgs 5.910
Vane Style [cntrc] Straight
Misc Holes [cntrc] 2
Weight [cntrc] Lbs 13.000
Product Grade [cntrc] Premium
Discard Thickness 24.400 MM
Discard Thickness 0.961 IN
Nominal Thickness 26.000 MM
Nominal Thickness 1.024 IN
Hat Finish Coated
Overall Height 45.800 MM
Overall Height 1.803 IN
Outside Diameter 276.000 MM
Outside Diameter 10.866 IN
ABS Tone Ring Included No
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Bearings Included No
Center Hole Diameter 68.800 MM
Center Hole Diameter 2.709 IN
Mounting Bolt Hole Circle Diameter 114.300 MM
Mounting Bolt Hole Circle Diameter 4.500 IN
Stud/Lug Hole Quantity 4
Stud/Lug Hole Diameter 12.400 MM
Stud/Lug Hole Diameter 0.488 IN

Additional Information

Harmonized Tariff Code (Schedule B) 8708300050
Harmonized Tariff Code (HTS) 8708305030
NAFTA Preference Criterion Code B
Country of Origin (Primary) CN
UPC 805890300533

Part Interchanges

CENTRIC 120.46070 Cross Reference

We have 2 alternatives for the 120.46070 by CENTRIC:

Fits Vehicles

  • Mitsubishi Lancer (2004)
