CENTRIC part description

Product Description

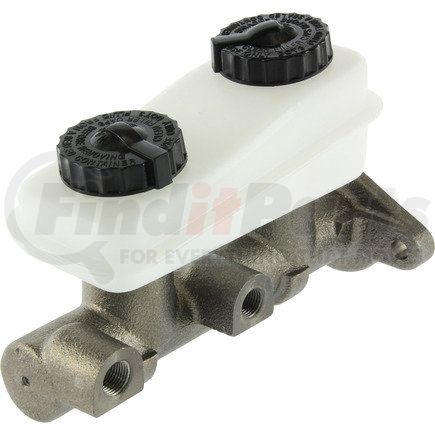

C-Tek Standard Brake Master Cylinder

Features & Benefits

  • Reservoirs and caps included. Pressure tested for worry free performance. Wide application coverage.

Product Attributes

Push Rod: Length / Depth [cntrc] In 0.89
Boss, Nipple Or Port: Rear: #a [cntrc] 1/2"-20 inv
Weight [cntrc] Kgs 0.91
Secondary Outlet Flare Type [cntrc] Inverted
Publication Bore [cntrc] 24mm
Boss, Nipple Or Port: Front, Left: #a [cntrc] 9/16"-20 inv
Weight [cntrc] Lbs 2
Primary Outlet Flare Type [cntrc] Inverted
Product Grade [cntrc] Standard
Reservoir Material Plastic
Mounting Hardware Included No
Mounting Hole Quantity 2
Master Cylinder Bore Diameter 0.945 IN
Master Cylinder Bore Diameter 24.000 MM
Brake Booster Included No
Master Cylinder Cap Included Yes
Master Cylinder Material Aluminum
Pushrod Included No
Reservoir Included Yes
Reservoir Type Single
Primary Outlet Thread Diameter 0.500 IN
Secondary Outlet Thread Diameter 0.5625 IN
Bleeder Hoses Included No
Port Quantity 2
Mounting Bracket Included No
9275 20 IN
9276 20 IN
Bore Type Straight
9425 24.000 MM
9425 0.945 IN
9556 9/16"-20
9557 1/2"-20
9566 Inverted
9567 Inverted
9568 24.000 MM
9568 0.945 IN
9570 Removable

Additional Information

Harmonized Tariff Code (HTS) 8413919050
NAFTA Preference Criterion Code B
Country of Origin (Primary) CN
UPC 805890166702

Part Interchanges

Fits Vehicles

  • Dodge Dakota (1987-1996)
