CENTRIC 125.35070 Part Description
Manufacturer
Product Description

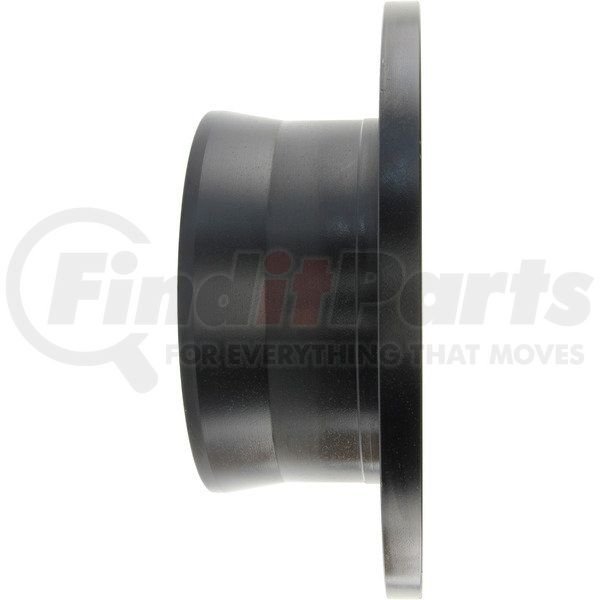

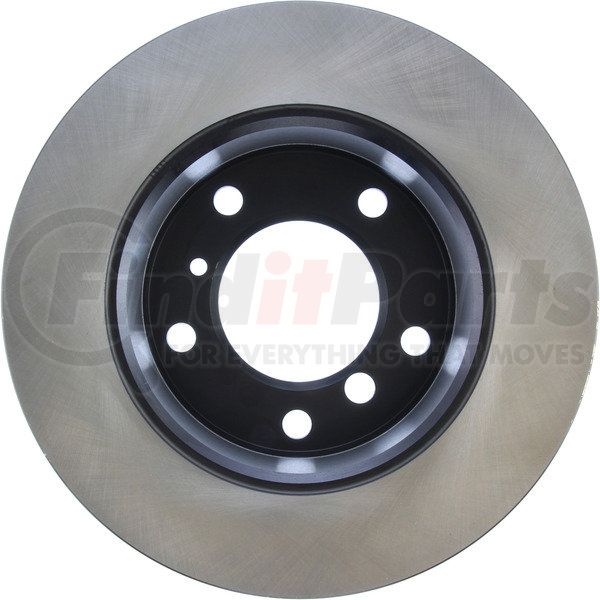

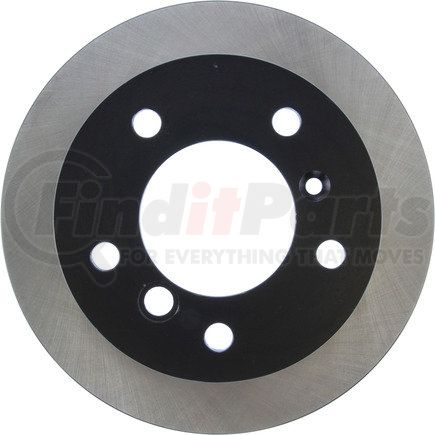

Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
CENTRIC 125.35070 Specifications
Product Attributes
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Floating / DIH |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 1 |
| Weight [cntrc] Lbs | 15.000 |
| Weight [cntrc] Kgs | 6.820 |
| Hat Id [cntrc] In | 6.299 |
| Hat Id [cntrc] Mm | 160.000 |
| Discard Thickness | 0.551 IN |
| Discard Thickness | 14.000 MM |
| Nominal Thickness | 0.638 IN |
| Nominal Thickness | 16.200 MM |
| Hat Finish | Coated |
| Overall Height | 3.815 IN |
| Overall Height | 96.900 MM |
| Outside Diameter | 272.000 MM |
| Outside Diameter | 10.709 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 159.700 MM |
| Nominal Drum Diameter | 6.287 IN |
| Bearings Included | No |
| Center Hole Diameter | 85.000 MM |
| Center Hole Diameter | 3.346 IN |
| Mounting Bolt Hole Circle Diameter | 130.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.118 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 15.000 MM |
| Stud/Lug Hole Diameter | 0.591 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 805890730002 |
CENTRIC 125.35070 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 980164FZN, 980164R, 980164 |
| N/A | 125.35070, BD126279E, BD126279, 52126279, 52-126279, E130-40-075, R4414736, 34227, YH145432, 27405, 34227G, 9024230412, 9024230512, 9024230612, 902423061207, 902423071207, 5103603AA, 5103603AB, 5103603AC, 9024230112, 5103603AE, 5103603AD, 2D0615601D, 2D0615601A, 980164P, 145432, 880164, E13040075, E12540075, E12287 |
CENTRIC 125.35070 Fits Vehicles
- Freightliner Sprinter 2500 (2002-2006)
- Freightliner Sprinter 3500 (2002-2005)
- Mercedes-Benz Sprinter (2007-2012)
- Mercedes-Benz G55 AMG (2003-2004)
- Dodge Sprinter 3500 (2003-2005)
- Dodge Sprinter 2500 (2003-2006)
- Mercedes-Benz G550 (2009-2017)
- Mercedes-Benz G500 (2002-2008)
CENTRIC 125.35070 Cross References
We have 3 alternatives for the 125.35070 by CENTRIC:
