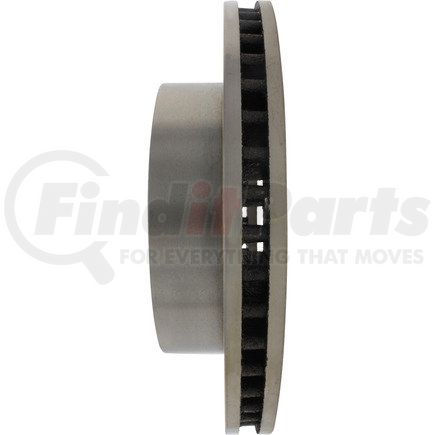

(888) 312-8812 Login SignupC-Tek Standard Brake Rotor
| Misc Holes [cntrc] | 0 |
| Product Grade [cntrc] | Standard |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 20.950 |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 9.520 |
| Discard Thickness | 28.390 MM |
| Discard Thickness | 1.118 IN |
| Nominal Thickness | 1.181 IN |
| Nominal Thickness | 30.000 MM |
| Overall Height | 73.500 MM |
| Overall Height | 2.894 IN |
| Outside Diameter | 307.500 MM |
| Outside Diameter | 12.106 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 78.500 MM |
| Center Hole Diameter | 3.091 IN |
| Mounting Bolt Hole Circle Diameter | 5.500 IN |
| Mounting Bolt Hole Circle Diameter | 139.700 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.626 IN |
| Stud/Lug Hole Diameter | 15.900 MM |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890102755 |
