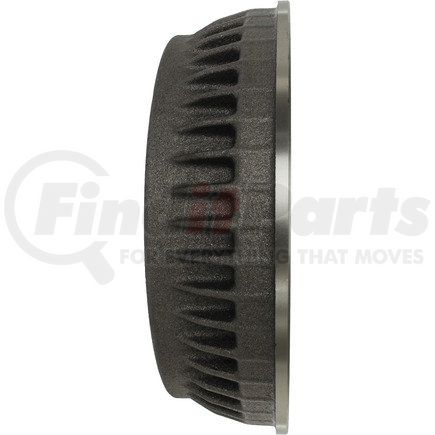

(888) 312-8812 Login SignupCENTRIC 12366002 C-Tek Standard Brake Drum
$8249
Limited availability at this price!
In Stock
Get it by Friday, Jan 23
CENTRIC 12366002 Part Description
Manufacturer
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
CENTRIC 12366002 Specifications
Product Attributes
| Weight [cntrc] Kgs | 7.727 |
| Weight [cntrc] Lbs | 17.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 127.000 |
| Bolt Circle Diameter [cntrc] In | 5.000 |
| Hub Hole / Register [cntrc] Mm | 78.740 |
| Hub Hole / Register [cntrc] In | 3.100 |
| Height [cntrc] Mm | 93.726 |
| Height [cntrc] In | 3.690 |
| Friction Surface Width [cntrc] Mm | 62.738 |
| Friction Surface Width [cntrc] In | 2.470 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 281.700 MM |
| Maximum Brake Diameter (Discard) | 11.090 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 339.090 MM |
| Outside Diameter | 13.350 IN |
| Outer Cooling Fins | Yes |
| Mounting Hole Diameter | 12.954 MM |
| Mounting Hole Diameter | 0.510 IN |
| Nominal Drum Diameter | 279.400 MM |
| Nominal Drum Diameter | 11.000 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890052913 |
CENTRIC 12366002 Cross References
| Brand | Part Number |
|---|---|
| MAGMA PRODUCTS | PMU22023 |
| N/A | BD60294, 52-60294, 5260294, E127-71-007, E128-71-007, 8819, BD8819, D93 720, 63 93 720, 8819G, 02622254, 3984855, 3989542, 2622254, 140254, PDR0254, 201190, 440-1199, 6401199, 803, AD8602, AD8602E, 123.66002, D2065, E12771007, E12871007, E8347, 87032, 23014, X21531, BD1054, 2065, 2065R, 102065, 2065DGS, 7844002, 78844002, 78-44002, 8844002, 68000, 177254, 177365, 36547034 |
| PRONTO | BD8819 |
| RAYBESTOS | 2065, 2065R |
| WAGNER | BD60294 |
CENTRIC 12366002 Fits Vehicles
- GMC P15/P1500 Van (1971-1974)
- GMC C15/C1500 Pickup (1971-1974)
- GMC G25/G2500 Van (1970-1973)
- GMC C15/C1500 Suburban (1971-1974)
- Chevrolet P10 Van (1971-1974)
- Chevrolet G20 Van (1967-1973)
- Chevrolet C10 Pickup (1971-1974)
- GMC R1500 (1987)
- GMC Jimmy (1975)
- GMC G15 (1975-1978)
- GMC C15 (1975-1978)
- GMC G1500 (1979-1989)
- GMC C15 Suburban (1975)
- GMC C1500 (1979-1986)
- Chevrolet R10 (1987)
- Chevrolet C10 Suburban (1969-1975)
- Chevrolet G10 (1975-1989)
- Chevrolet K5 Blazer (1975)
- Chevrolet C10 (1975-1986)
