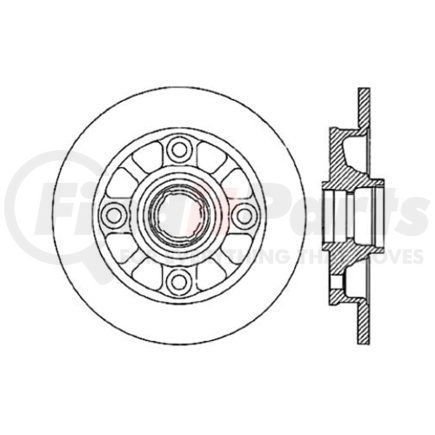

Centric 120.45020 - Centric Premium Brake Rotor
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
Product Attributes
| Notes [cntrc] | Studs Not Included |
| Inner Bearing # [cntrc] | 410.91004 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Hub & Rotor |
| Weight [cntrc] Lbs | 12.000 |
| Inner Seal # [cntrc] | 417.45010 |
| Outer Bearing # [cntrc] | 410.91002 |
| Weight [cntrc] Kgs | 5.450 |
| Misc Holes [cntrc] | 0 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 9.000 MM |
| Discard Thickness | 0.354 IN |
| Nominal Thickness | 10.200 MM |
| Nominal Thickness | 0.402 IN |
| Hat Finish | Coated |
| Overall Height | 72.500 MM |
| Overall Height | 2.854 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| 54 | 254.000 MM |
| Rotor Outside Diameter | 10.000 in |
| Solid Or Vented Type Rotor | Solid |
| Bearings Included | No |
| Center Hole Diameter | 59.500 MM |
| Center Hole Diameter | 2.343 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 4 |
| Stud/Lug Hole Diameter | 12.500 MM |
| Stud/Lug Hole Diameter | 0.492 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890029595 |
Part Interchanges
CENTRIC 120.45020 Cross Reference
We have 1 alternatives for the 120.45020 by CENTRIC:
Fits Vehicles
- Mazda 626 (1986-1987)
