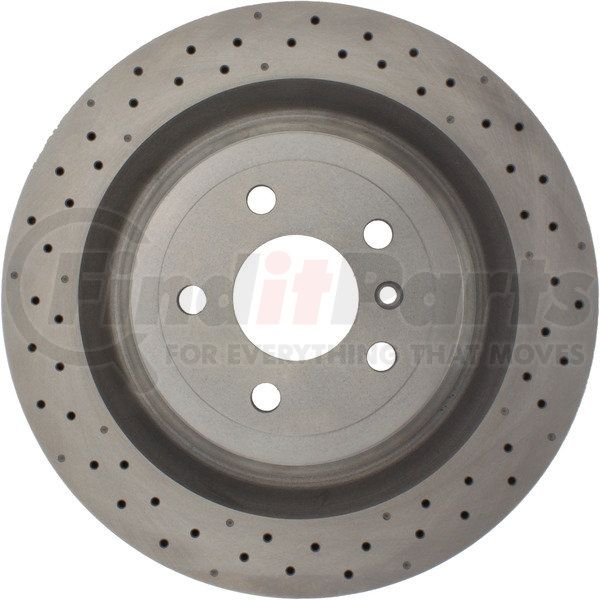

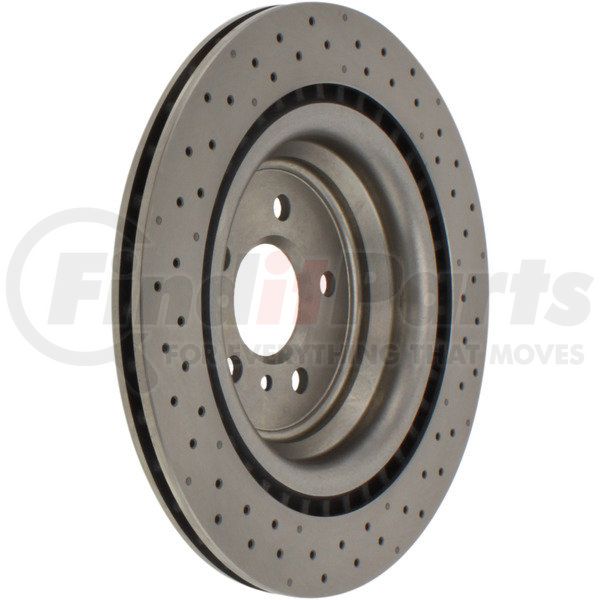

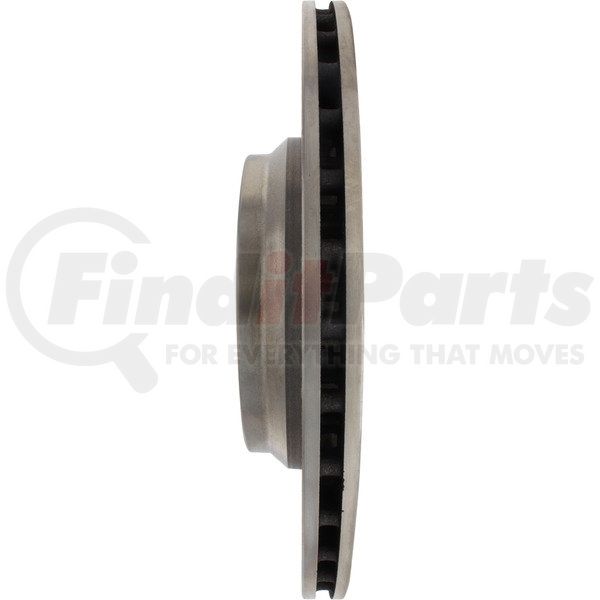

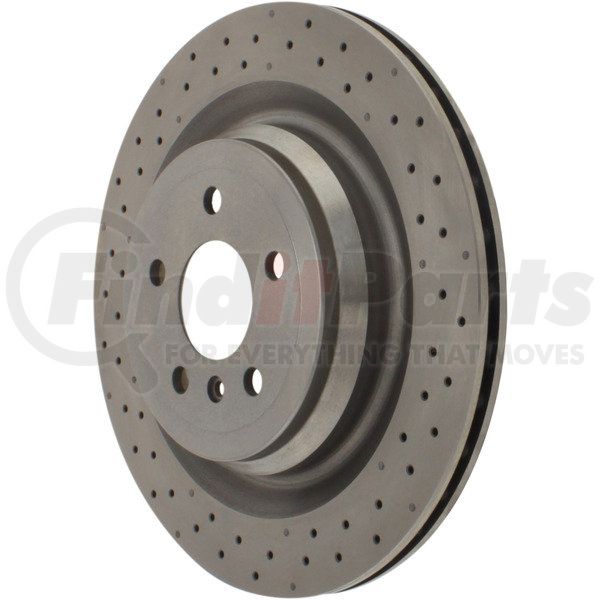

Centric 228.35145 - C-Tek Standard Drilled Brake Rotor
$7599
MSRP: $84.85
Save: $8.86
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
C-Tek Standard Drilled Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. G11 metallurgy. Drilled for increased bite; improved looks and better performance
Product Attributes
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Lbs | 18.450 |
| OEM Vane Count [cntrc] | 111 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Hat Id [cntrc] Mm | 154.000 |
| Product Grade [cntrc] | Standard |
| Hat Id [cntrc] In | 6.063 |
| Vane Style [cntrc] | Pillar |
| Weight [cntrc] Kgs | 8.380 |
| Misc Holes [cntrc] | 1 |
| Discard Thickness | 19.400 MM |
| Discard Thickness | 0.764 IN |
| Nominal Thickness | 22.000 MM |
| Nominal Thickness | 0.866 IN |
| Overall Height | 54.000 MM |
| Overall Height | 2.126 IN |
| Outside Diameter | 345.000 MM |
| Outside Diameter | 13.583 IN |
| ABS Tone Ring Included | No |
| Surface Type | X Drilled |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 67.000 MM |
| Center Hole Diameter | 2.638 IN |
| Mounting Bolt Hole Circle Diameter | 112.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 15.200 MM |
| Stud/Lug Hole Diameter | 0.598 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890459774 |
Part Interchanges
Fits Vehicles
- Mercedes-Benz GLS550 (2017-2019)
- Mercedes-Benz ML63 AMG (2013)
- Mercedes-Benz GL550 (2013)
- Mercedes-Benz GL450 (2013-2015)
- Mercedes-Benz GL350 (2013-2015)
- Mercedes-Benz ML350 (2012, 2015)
