(888) 312-8812 Login SignupCENTRIC 228.62103 C-Tek Standard Drilled Brake Rotor
Tap to view 4 more
$9949
Limited availability at this price!
In Stock
Get it by Thursday, Jan 8
CENTRIC 228.62103 Part Description
Manufacturer
Product Description

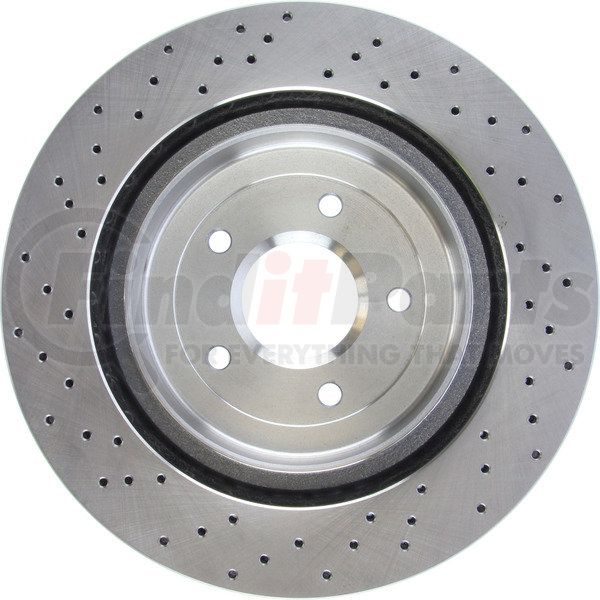

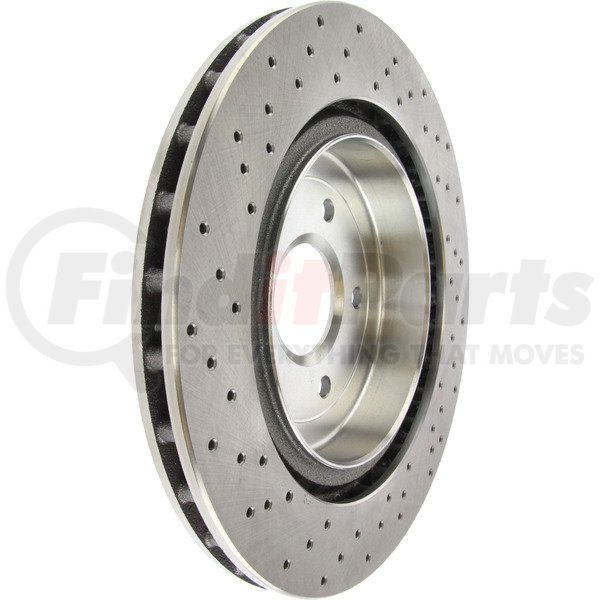

C-Tek Standard Drilled Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. G11 metallurgy. Drilled for increased bite; improved looks and better performance
CENTRIC 228.62103 Specifications
Product Attributes
| Weight [cntrc] Kgs | 9.070 |
| Weight [cntrc] Lbs | 19.950 |
| Disc Mounting [cntrc] | Floating / DIH |
| Max Pb Drum Dia [cntrc] In | 7.496 |
| Misc Holes [cntrc] | 0 |
| Max Pb Drum Dia [cntrc] Mm | 190.400 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Standard |
| Discard Thickness | 24.000 MM |
| Discard Thickness | 0.945 IN |
| Nominal Thickness | 26.000 MM |
| Nominal Thickness | 1.024 IN |
| Overall Height | 49.200 MM |
| Overall Height | 1.937 IN |
| Outside Diameter | 340.000 MM |
| Outside Diameter | 13.386 IN |
| ABS Tone Ring Included | No |
| Surface Type | X Drilled |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 190.000 MM |
| Nominal Drum Diameter | 7.480 IN |
| Bearings Included | No |
| Center Hole Diameter | 2.787 IN |
| Center Hole Diameter | 70.800 MM |
| Mounting Bolt Hole Circle Diameter | 120.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 13.400 MM |
| Stud/Lug Hole Diameter | 0.528 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890459750 |
CENTRIC 228.62103 Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | 850220, 41231, 228.62103, AR82114, 55129, 41231G, 62047035, PRT5695, 580407R |
CENTRIC 228.62103 Fits Vehicles
- Chevrolet Corvette (2006-2013)
CENTRIC 228.62103 Cross References
We have 1 alternatives for the 228.62103 by CENTRIC:
