(888) 312-8812 Login SignupCENTRIC 407.45001E C-Tek Standard Hub and Bearing Assembly; With Integral ABS
Tap to view 4 more
$13549
Limited availability at this price!
5 Day Lead Time
Get it by Wednesday, Jan 14
CENTRIC 407.45001E Part Description
Manufacturer
Product Description

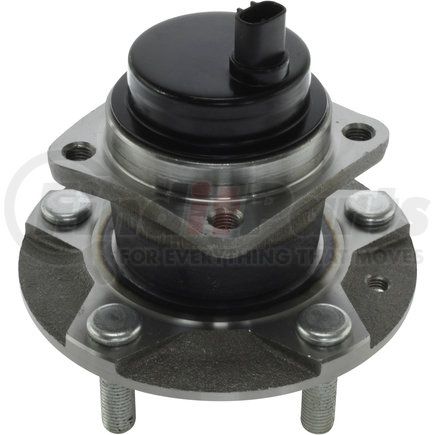

C-Tek Standard Hub and Bearing Assembly; With Integral ABS
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
CENTRIC 407.45001E Specifications
Product Attributes
| Mounting Thread Pitch [cntrc] Mm | 1.250 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Mouting Thread Size [cntrc] Mm | 10.000 |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Mounting Hole Qty [cntrc] | 4 |
| Product Grade [cntrc] | Premium |
| Off-set [cntrc] Mm | 2.142 |
| Inner Mount Pilot [cntrc] In | 2.909 |
| Off-set [cntrc] In | 54.410 |
| Inner Mount Pilot [cntrc] Mm | 73.890 |
| Notes [cntrc] | Retaining Holes 2xM8-1.25 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
| Wheel Stud Size | 12.000 MM |
| Wheel Pilot Diameter | 66.930 MM |
| Wheel Pilot Diameter | 2.635 IN |
| Brake Pilot Diameter | 74.680 MM |
| Brake Pilot Diameter | 2.940 IN |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 5.500 IN |
| Flange Diameter | 139.700 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8482105016 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890977278 |
CENTRIC 407.45001E Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | NP12605, MB76303, HA590096, PT513341, 513341, WE61257, F151 33 04X, F1513304X |
CENTRIC 407.45001E Fits Vehicles
- Mazda RX-8 (2004-2011)
