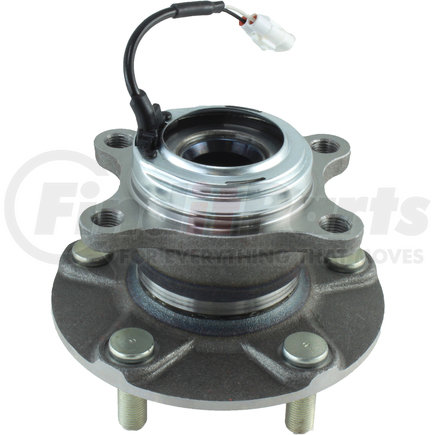

Centric 402.48001E - C-Tek Standard Hub and Bearing Assembly; With Integral ABS
$10099
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
C-Tek Standard Hub and Bearing Assembly; With Integral ABS
Features & Benefits
- High Quality Replacement Components. High quality steel and surface finishes reduce noise and extend service life . Exact engineering ensures smooth installation
Product Attributes
| Mounting Thread Pitch [cntrc] Mm | 1.750 |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Mouting Thread Size [cntrc] Mm | 12.000 |
| Thread Pitch To Wheel Mounting [cntrc] In | 18.000 |
| Mounting Hole Qty [cntrc] | 4 |
| Product Grade [cntrc] | Premium |
| Off-set [cntrc] Mm | 2.363 |
| Inner Mount Pilot [cntrc] In | 2.833 |
| Off-set [cntrc] In | 60.020 |
| Inner Mount Pilot [cntrc] Mm | 71.960 |
| Notes [cntrc] | With ABS |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Spline Quantity | 24 |
| Wheel Stud Size | 0.563 IN |
| Wheel Pilot Diameter | 59.940 MM |
| Wheel Pilot Diameter | 2.360 IN |
| Brake Pilot Diameter | 62.000 MM |
| Brake Pilot Diameter | 2.441 IN |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 5.500 IN |
| Flange Diameter | 139.700 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8482105016 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890977148 |
Part Interchanges
Fits Vehicles
- Suzuki SX4 Crossover (2012)
- Suzuki SX4 (2007-2013)
