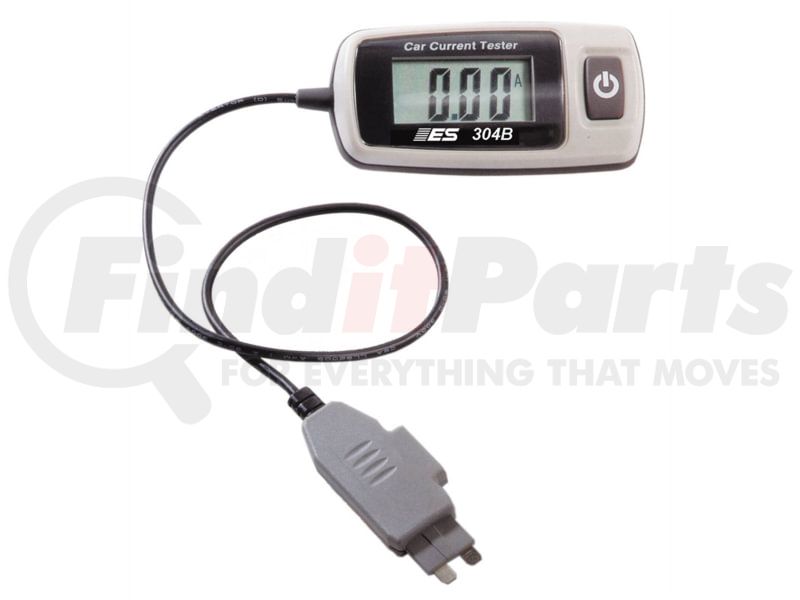

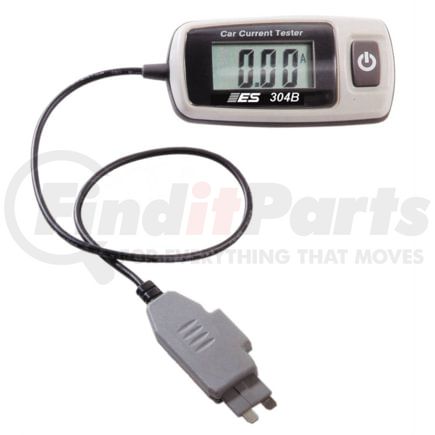

Name: Electronic Specialties 304B Fuse Buddy Tester - ATC Blade
SKU: 304b
Price: 24.49 USD
Availability: InStock

ELECTRONIC SPECIALTIES part description

Features and Benefits

Blowing Fuses? Plug in the FUSE BUDDY and read the circuit amperage draw.
FUSE BUDDY can test the circuit amperage draw up to 20 amps.
Original fuse is replaced in-line during testing, thereby maintaining circuit protection.
Easy connection into ATD Blade fuse socket, FUSE BUDDY end is shaped like a fuse.
Great tool for electrical troubleshooting at the fuse box.
Can be used on all circuits up to 20 amps.
Can even be used to test parasitic drains (battery drains).
Test range: 0 – 20 Amps ~ 48V DC ~ .01A resolution

Since 1967, Electronic Specialties, Inc.® has been designing, engineering, and manufacturing high-quality test instruments for automotive, marine, HVAC, small engine, and industrial applications. Its innovative and time-saving products have already won various awards and patents, such as the Top 20 Tools in 2015 for its Starter Buddy, a tool used primarily in testing the health of the vehicle’s entire electrical starting/cranking circuit. Other award-winning products from this brand include the Max Fuse Buddy, Fuse Buddy Pro Test Kit, Low Current Probe/DMM, Load Pro, Relay Buddy, Short Buddy® Audible Trouble Shooter, and True RMS Low Current Clamp Meter. Electronic Specialties’ headquarters is located in Genoa City, Wisconsin.
