(888) 312-8812 Login SignupCURT MANUFACTURING 45220 Dual-Length Ball Mount (2in. Shank; 7;500 lbs.; 2in. Drop; 7-1/2in. or 10-1/2in.
Tap to view 6 more
$5599
Limited availability at this price!
In Stock
Get it by Friday, Feb 6
CURT MANUFACTURING 45220 Part Description
Manufacturer
Product Description

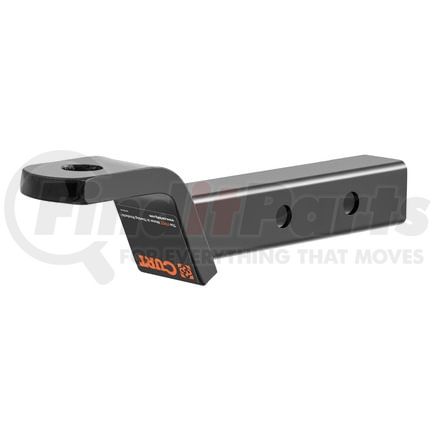

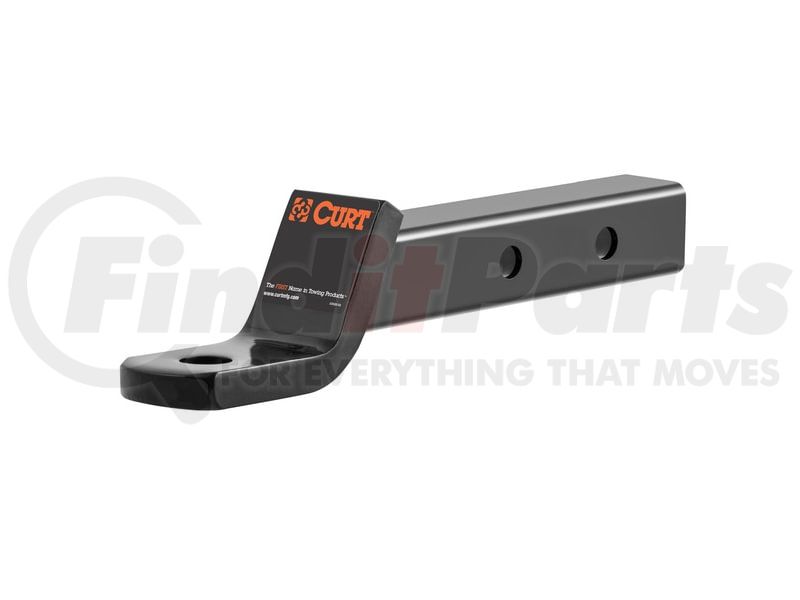

Dual-Length Ball Mount (2in. Shank; 7;500 lbs.; 2in. Drop; 7-1/2in. or 10-1/2in.

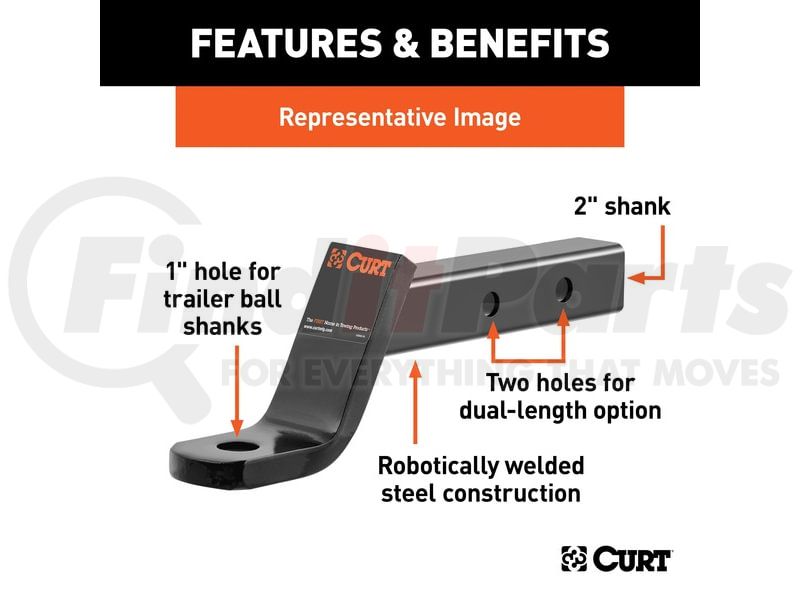

Features & Benefits

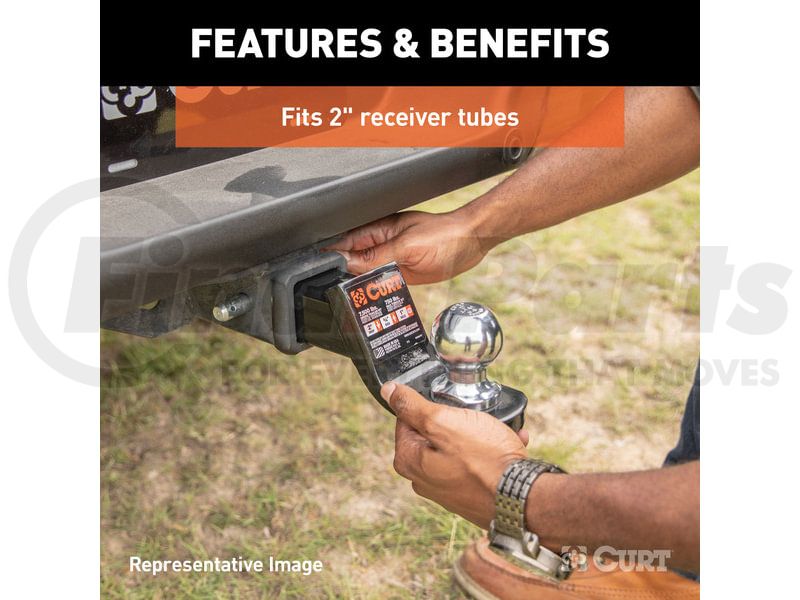

- Fits trailer hitches with a 2" x 2" receiver tube opening

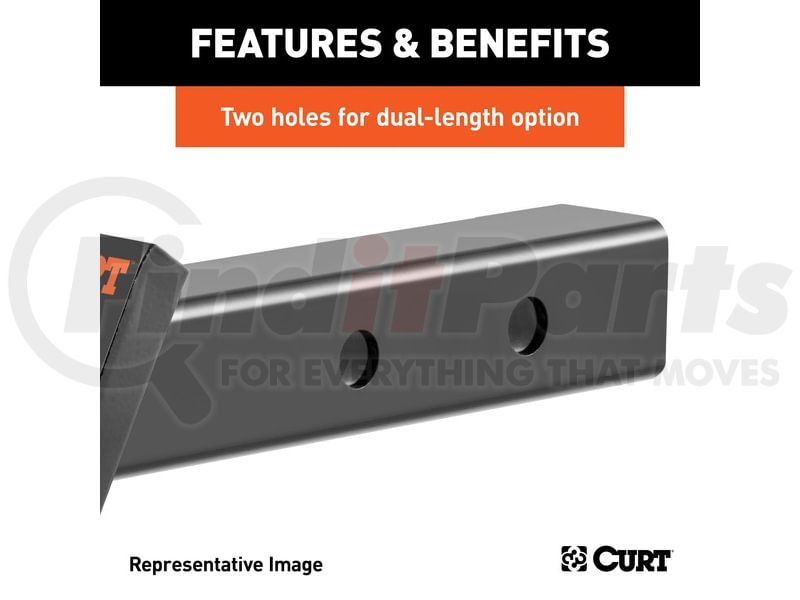

- Features two hitch pin holes for 7-1/2" or 10-1/2" length

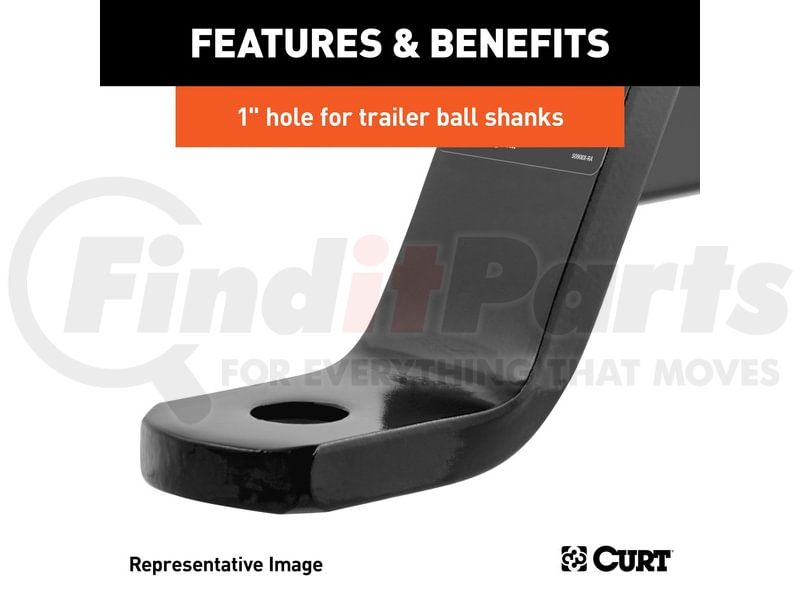

- Equipped with a 1" hole to accept a trailer ball shank

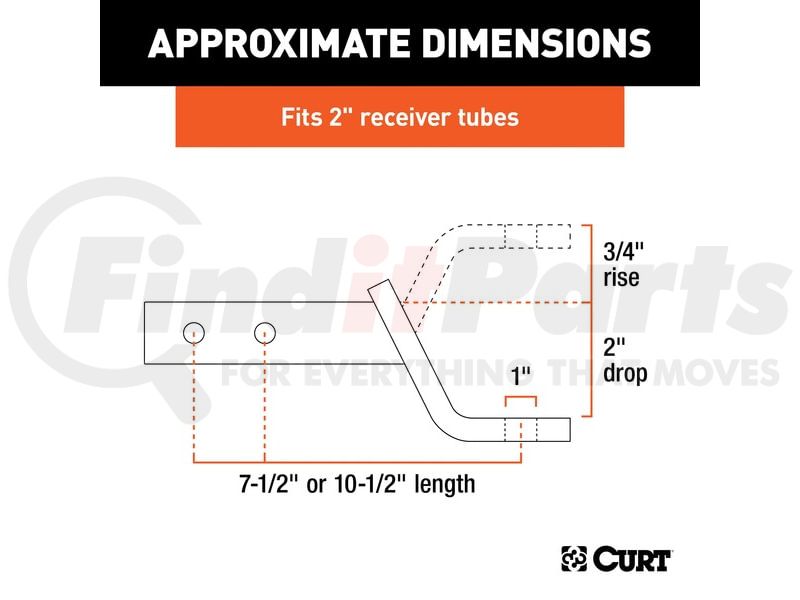

- 3/4" rise or 2" drop for precise trailer leveling
- Hollow shank weighs less and can be used with an anti-rattle kit
- CNC-formed, robotically welded and mechanically descaled for a perfect fit
- Limited lifetime warranty (one-year finish, one-year parts)
- Fits Trailer Hitches w/A 2 In. X 2 In. Receiver Tube Opening
- Features Two Hitch Pin Holes For 7 1/2 In. Or 10 1/2 In. Length
- Equipped w/A 1 In. Hole To Accept A Trailer Ball Shank
- 3/4 In. Rise Or 2 In. Drop For Precise Trailer Leveling
- Hollow Shank Weighs Less And Can Be Used w/An Anti-Rattle Kit
- CNC-Formed Robotically Welded And Mechanically Descaled
- Protected By A Durable Powder Coat Finish
- Made In USA
Fits trailer hitches with a 2" x 2" receiver tube opening
CURT MANUFACTURING 45220 Specifications
Product Attributes
| Drop | 2.000 in. |
| Finish | Gloss Black Powder Coat |
| Gross Trailer Weight | 7500 lbs. |
| Overall Length | 10.500 in. |
| Receiver Tube Size | 2.000 in. |
| Rise | 0.750 in. |
| Style | Fixed |
| WARNING CA Proposition 65 | No |
| WC Tongue Weight | 750 |
| Item Class - Xa | OMF |
| Item Height - Xa | 0.000 |
| Item Length - Xa | 0.000 |
| Item Width - Xa | 0.000 |
| Master Case Height Inches - XA | 0.000 |
| Master Case Inner Pack Qty - XA | 0 |
| Master Case ITF14 | 0 |
| Master Case ITF14 - XA | 0 |
| Master Case Length Inches - XA | 0.000 |
| Master Case Qty - XA | 0 |
| Master Case Volume Cubic Feet - XA | 0.00000 |
| Master Case Weight Lbs - XA | 0.000 |
| Master Case Width Inches - XA | 0.000 |
| Material - Xa | Carbon Steel |
| Mount Type Description - Xa | Blank |
| Pallet Case Per - XA | 0 |
| Pallet Case Per Layer - XA | 0 |
| Pallet Cases Per - XA | 0 |
| Pallet Cases Per Layer - XA | 0 |
| Pallet Layer of Cases - XA | 0 |
| Pallet Qty - XA | 0.000 |
| Pallet Total Height Inches - XA | 0.000 |
| Pallet Total Weight Per - XA | 0.000 |
| Parcel Allowed - Xa | Yes |
| Product Weight - Xa | 0.000 |
| Prop 65 Label Text - XA | Blanks |
| Prop 65 Material - XA | Unknown |
| Prop 65 Reason - XA | Unknown |
| Prop 65 Warning Label Type - XA | Unknown |
| Prop 65 Warning Y/N - XA | NO |
| Rate Class - Xa | 60.0 |
| Retail Height - Xa | 3.000 |
| Retail Length - Xa | 15.000 |
| Retail Width - Xa | 4.000 |
| Sales Family Code - Xa | ACCES |
| Sales Family Description - Xa | ACCESSORIES |
| Sales Group Description - Xa | BALL MOUNT |
| Shipping Weight - Xa | 8.000 |
| Side Application Type Description - Xa | Blank |
| Tariff 301 - Xa | No |
| Title | Dual-Length Ball Mount (2" Shank, 7,500 lbs., 2" Drop, 7-1/2" or 10-1/2" Long) |
| Tongue Weight (tw) | 750 LB |
| Truckload Cases Qty - XA | 0 |
| Truckload Pallets Qty - XA | 0 |
| Truckload Units Qty - XA | 0 |
| Truckload Volume Cubic Feet - XA | 0.00000 |
| Truckload Weight - XA | 0 |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Box Height In Inches - Xa | 0 |
| Box Length In Inches - Xa | 0 |
| Box Width In Inches - Xa | 0 |
| Class Id | 0 |
| Container Cases Qty - XA | 0 |
| Container Pallet Qty - XA | 0 |
| Container Unit Qty - XA | 0 |
| Container Volume Cubic Feet - XA | 0.00000 |
| Container Volume Cubic Meter - XA | 0.00000 |
| Container Weight KG - XA | 0 |
| Container Weight Lbs - XA | 0 |
| Finish - Xa | GLOSS BLACK POWDER COAT |
| Gross Trailer Weight (gtw) | 7,500 LB |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708998180 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| NAFTA Preference Criterion Code | B |
| Warranty Special | Limited Lifetime Warranty (One-Year Finish; One-Year Parts) |
| Warranty Special UOM | TX |
| UPC | 00612314422005 |
CURT MANUFACTURING 45220 Cross References
| Brand | Part Number |
|---|---|
| Lippert | 2020103279 |
