(888) 312-8812 Login SignupCURT MANUFACTURING 28570 Direct-Weld Square Jack with Top Handle (8;000 lbs; 15in. Travel)
Tap to view 3 more
$14799
Limited availability at this price!
In Stock
Get it by Wednesday, Dec 31
CURT MANUFACTURING 28570 Part Description
Manufacturer
Product Description

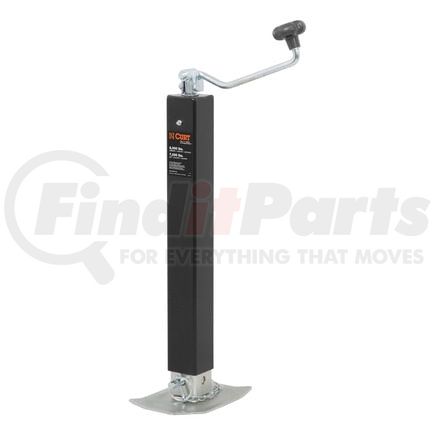

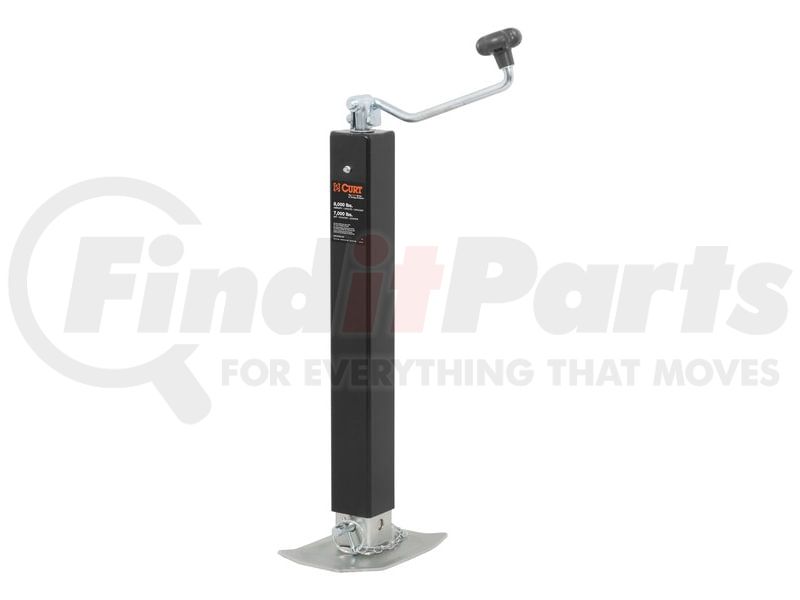

Direct-Weld Square Jack with Top Handle (8;000 lbs; 15in. Travel)

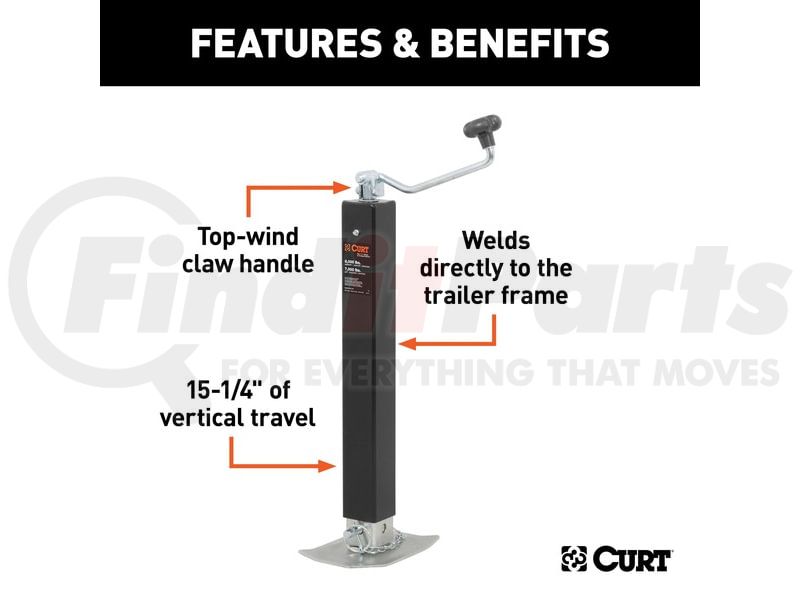

Features & Benefits
- Rated for 8,000 lbs. support capacity and 7,000 lbs. lift capacity
- 15" of vertical travel accommodate multiple ball heights
- Limited lifetime warranty (one-year finish, one-year parts)
- Supports Up To 8000 Lbs. Of Trailer Tongue Weight

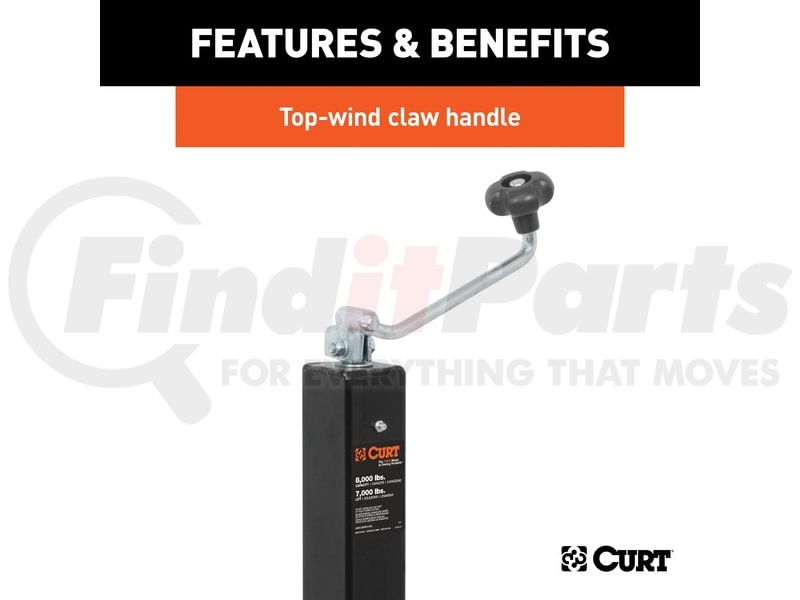

- Top-Wind Claw Handle Easily Raises Or Lowers Trailer Coupler
- Designed To Weld Directly To The Trailer Frame
- 15 In. Of Vertical Travel Accommodate Multiple Ball Heights
Designed to weld directly to the trailer frame
CURT MANUFACTURING 28570 Specifications
Product Attributes
| Finish | Carbide Black Powder Coat |
| WARNING CA Proposition 65 | No |
| Attached Wheels | No |
| Box Height In Inches - Xa | 0 |
| Box Length In Inches - Xa | 0 |
| Box Width In Inches - Xa | 0 |
| Class Id | 0 |

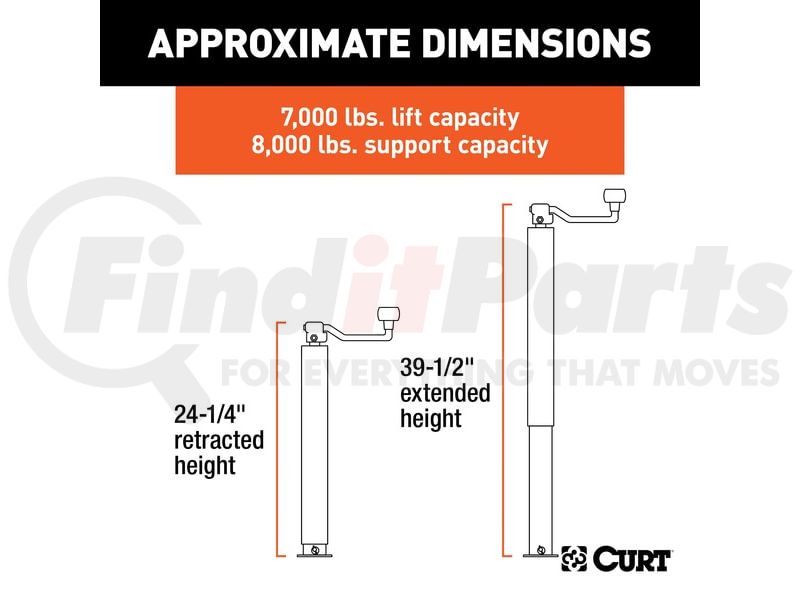

| Collapsed Height | 24.25 IN |
| Color | Black / Silver |
| Container Cases Qty - XA | 19 |
| Container Load Type - XA | PALLETS |
| Container Pallet Qty - XA | 19 |
| Container Type - XA | 20GP |
| Container Unit Qty - XA | 1710 |
| Container Volume Cubic Feet - XA | 0.00000 |
| Container Volume Cubic Meter - XA | 0.00000 |
| Container Weight KG - XA | 0 |
| Container Weight Lbs - XA | 38399 |
| Finish - Xa | CARBIDE BLACK POWDER COAT |
| Item Class - Xa | OBS |
| Item Height - Xa | 5.800 |
| Item Length - Xa | 24.900 |
| Item Width - Xa | 7.900 |
| Lift Capacity | 7000 |
| Master Case Height Inches - XA | 0.000 |
| Master Case Inner Pack Qty - XA | 0 |
| Master Case ITF14 | 0 |
| Master Case ITF14 - XA | 0 |
| Master Case Length Inches - XA | 0.000 |
| Master Case Qty - XA | 90 |
| Master Case Volume Cubic Feet - XA | 0.00000 |
| Master Case Weight Lbs - XA | 1972.000 |
| Master Case Width Inches - XA | 0.000 |
| Material | Steel |
| Material - Xa | Blank |
| Maximum Extended Height | 39.5 IN |
| Mount Type Description - Xa | Blank |
| Pallet Case Per - XA | 90 |
| Pallet Case Per Layer - XA | 0 |
| Pallet Cases Per - XA | 90 |
| Pallet Cases Per Layer - XA | 0 |
| Pallet Layer of Cases - XA | 0 |
| Pallet Qty - XA | 0.000 |
| Pallet Total Height Inches - XA | 37.000 |
| Pallet Total Weight Per - XA | 2021.000 |
| Parcel Allowed - Xa | Yes |
| Product Weight - Xa | 0.000 |
| Prop 65 Label Text - XA | Blanks |
| Prop 65 Material - XA | Unknown |
| Prop 65 Reason - XA | Unknown |
| Prop 65 Warning Label Type - XA | Unknown |
| Prop 65 Warning Y/N - XA | NO |
| Rate Class - Xa | 60.0 |
| Retail Height - Xa | 6.000 |
| Retail Length - Xa | 25.000 |
| Retail Width - Xa | 8.000 |
| Sales Family Code - Xa | TPACC |
| Sales Family Description - Xa | TRAILER PARTS AND ACCESS |
| Sales Group Description - Xa | TRAILER JACK |
| Shipping Weight - Xa | 21.900 |
| Side Application Type Description - Xa | Blank |
| Support Capacity | 8000 |
| Tariff 301 - Xa | Yes |
| Title | Direct-Weld Square Jack with Top Handle (8,000 lbs, 15" Travel) |
| Travel | 15 |
| Truckload Cases Qty - XA | 0 |
| Truckload Pallets Qty - XA | 0 |
| Truckload Units Qty - XA | 0 |
| Truckload Volume Cubic Feet - XA | 0.00000 |
| Truckload Weight - XA | 0 |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Weight Capacity | 8,000 LB |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8425490000 |
| Harmonized Tariff Code (HTS) | 8425490000 |
| NAFTA Preference Criterion Code | B |
| Warranty Special | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Warranty Special UOM | TX |
| UPC | 00612314006731 |
