WEBB part description

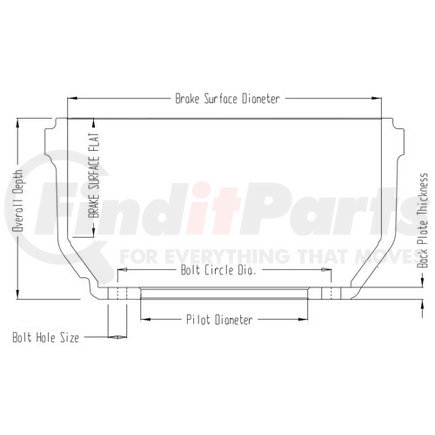

Specifications

Mount Type Outboard
Bolt Circle Diameter 11.25
Type V
Back Plate Thickness 0.5
Brake Surface Diameter 15
Overall Depth 8.89
Brake Surface Flat 4.7
Pilot Diameter 8.78
Bolt Hole Number 10
Bolt Hole Size 1.31
Maximum Wear Diameter 15.12
Special Information Pallet of 20-77528B's

WEBB 77528B20 Cross Reference

We have 2 alternatives for the 77528B20 by WEBB:

In business since 1946, Webb® has been a trusted brand for high-quality brake and wheel hub components in the heavy duty transportation industry. The company maintains an extensive catalog of OEM and aftermarket brake drums, brake rotors and calipers, and wheel hubs for Class 6, 7, and 8 trucks and heavy duty trailers. Each Webb product is made of premium materials and engineered for reduced weight without compromising structural strength or balance. All parts are also manufactured using the latest innovations, including advanced wear indicators and cool running vent technology to help minimize wear and make maintenance and repairs easier. Combined with a first-class customer service and after-sales support, customers can count on Webb products to keep their trucks running safely and smoothly for years to come.
