HORTON 99A9907 Part Description
Manufacturer
Product Description

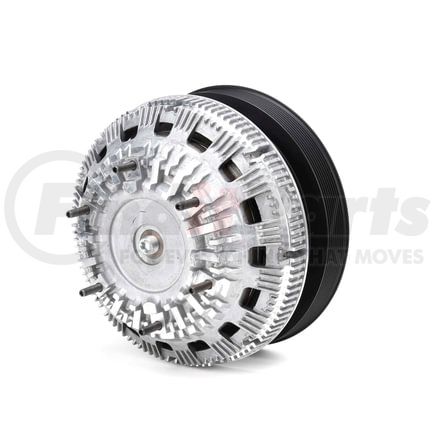

DM Advantage Two-Speed Fan Clutch
Application Summary
OSHKOSH
Features & Benefits
- Low eddy-current speeds reduce noise, increase available horsepower, conserve fuel and minimize radiator abrasion
- Higher, spring-actuated fan speeds make sure necessary cooling is delivered
- Faster engine warm-ups in cold weather
- Premium bearings and friction liners
- High torque for turning large fans
- Lower parts count for easy installation and maintenance
Two-speed fan clutch, fan clutch, engine cooling, fan drive, performance, cooling system, horsepower, performance
HORTON 99A9907 Specifications
Product Attributes
| BACK PULLEY DIAMETER | 10.32 IN |
| BELT CONFIGURATION | 8K, 1V |
| Belt Groove Location | 1 IN |
| BOLT CIRCLE | 6 IN |
| Fan Blade Stud Length | 0.94 IN |
| FAN PILOT DIAMETER | 5 IN |
| FRONT PULLEY DIAMETER | 8.75 IN |
| Heavy Duty | TRUE |
| HORIZONTAL MOUNTING DISTANCE | 2.36 IN |
| Overall Length | 6.53 IN |
| Stud Thread Size | .312-18 UNC 2A IN |
| VERTICAL MOUNTING DISTANCE | 7.25 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8483604040 |
| Harmonized Tariff Code (HTS) | 8483604040 |
| NAFTA Preference Criterion Code | B |
| OEM's Part Number | 98A9907 |
| Warranty Distance | 300000 |
| Warranty Distance UOM | DH |
| Warranty Special | 7500 Hours |
| Warranty Special UOM | TX |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| VMRS Code | 042003131 |
HORTON 99A9907 Part Interchanges
| Brand | Part Number |
|---|---|
| Oshkosh | 1487983, 3552949, 6KP506 |
| NAVISTARPFC | FLT999022 |
| Pierce | 3552949 |
| N/A | HOR99A9907, 3912-99A9907, HOR 99A9907, 4034100, ZBH99A9907, 79A9907, 4043000, 999907, 989907 |
HORTON 99A9907 Cross References
We have 1 alternatives for the 99A9907 by HORTON:
