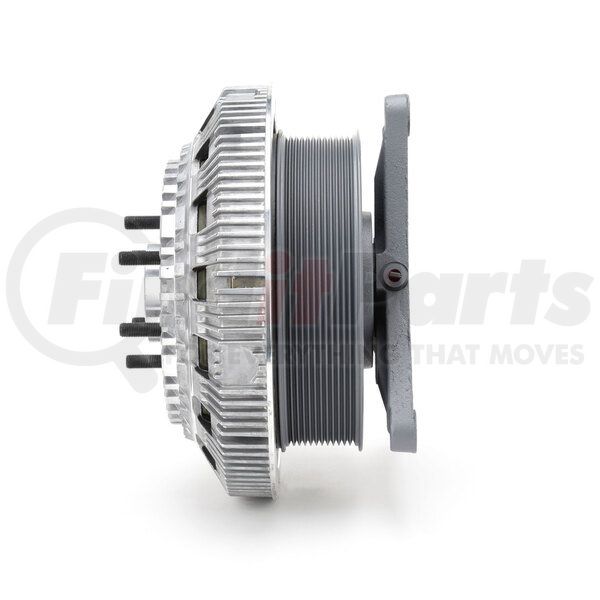

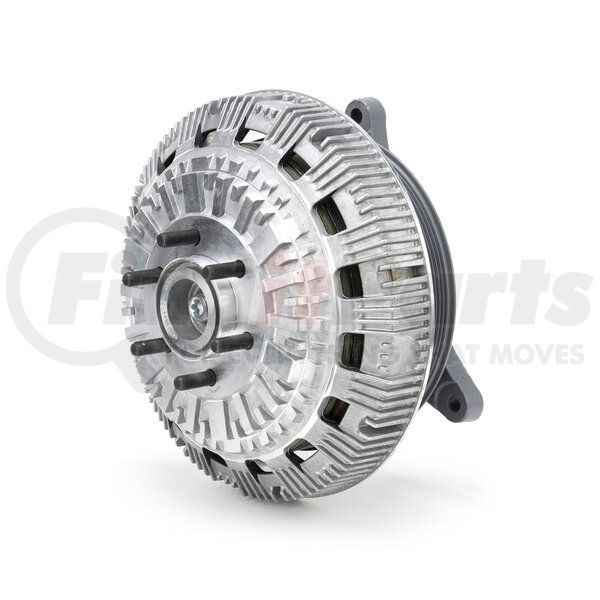

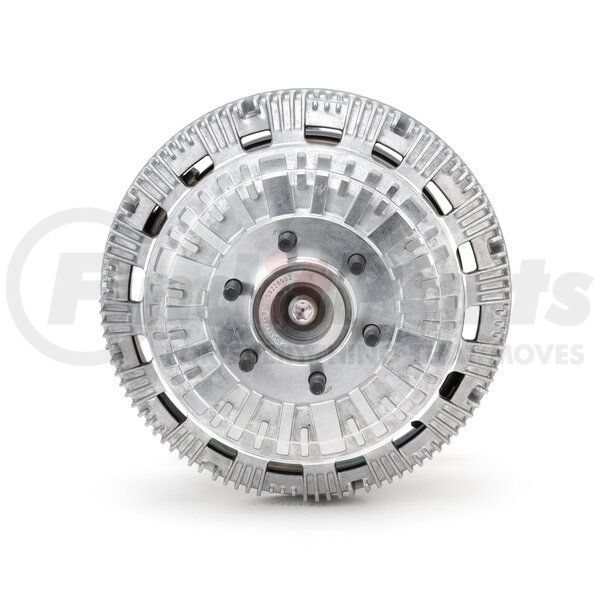

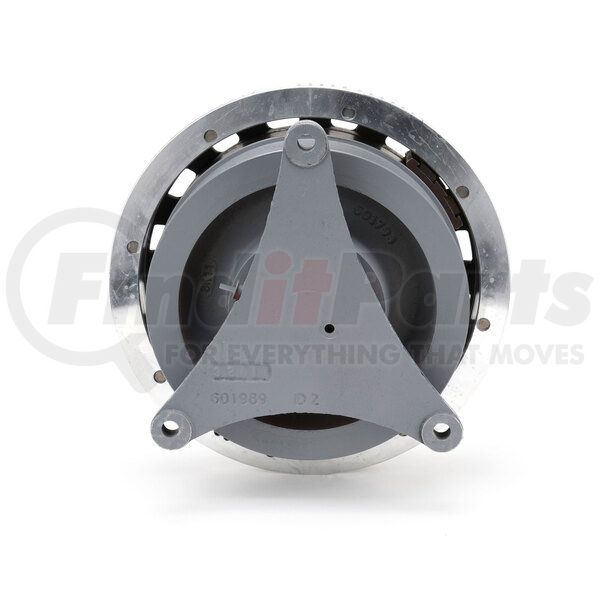

Horton 79A9644-2 - DM Advantage Two-Speed Reman Fan Clutch
$1,28949
+$533.33 Core Deposit
Total price w/ core: $1,822.82
MSRP: $1,677.15
Save: $387.66
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
HORTON part description
Product Description
DM Advantage Two-Speed Reman Fan Clutch
Application Summary
MACK, VOLVO
Features & Benefits
- Built to the same specifications as Horton Genuine models
- Easy-to-install, exact drop-in replacements
- Total cost can be less than rebuilding
- Two-year warranty for line-haul applications
- Credit for old Horton or competitor cores
- Low eddy-current speeds reduce noise, increase available horsepower, conserve fuel and minimize radiator abrasion
- Higher, spring-actuated fan speeds make sure necessary cooling is delivered
- Faster engine warm-ups in cold weather
- Premium bearings and friction liners
- High torque for turning large fans
- Lower parts count for easy installation and maintenance
Two-speed fan clutch, fan clutch, engine cooling, fan drive, performance, cooling system, horsepower, performance, reman
Product Attributes
| BACK PULLEY DIAMETER | 7.87 IN |
| BELT CONFIGURATION | 12PK |
| Belt Groove Location | 1.48 IN |
| BOLT CIRCLE | 3.5 IN |
| Center of JB To Top Right Mounting Hole | 4.39 IN |
| Fan Blade Stud Length | 1.07 IN |
| FAN PILOT DIAMETER | 2.56 IN |
| Heavy Duty | TRUE |
| HORIZONTAL MOUNTING DISTANCE | 6.73 IN |
| Overall Length | 6.13 IN |
| VERTICAL MOUNTING DISTANCE | 7.21 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8483604040 |
| Harmonized Tariff Code (HTS) | 8483604040 |
| NAFTA Preference Criterion Code | B |
| OEM's Part Number | 98A9644-2 |
| Warranty Distance | 300000 |
| Warranty Distance UOM | DH |
| Warranty Special | 7500 Hours |
| Warranty Special UOM | TX |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| VMRS Code | 042003131 |
Part Interchanges
- BorgWarner 21210845
- Volvo 20883819
- Volvo 21192240
- Volvo 21596045
- Volvo 21925087
- VOLVO 22113077
- Volvo 85115602
- Volvo 85139329
- NAVISTARPFC FLT995522
- Mack 21596045
- Mack 22113077
- Mack 40MH4103M
- MACK 22113077
- MACK 40MH4103M
- 20883819
- HOR79A96442
- 79A9644-2RMAN
- HOR 79A9644 2
- 79A5644-2
- HOR79A9644-2
- 21192240
- 21596045
- 21925087
- 22113077
- 85115602
- 85139329
- 98A9644-2
- 99A9644-2
- R799644-2
- K799644-2
- 3912-79A9644-2
- 3912-79A96442
HORTON 79A9644-2 Cross Reference
We have 1 alternatives for the 79A9644-2 by HORTON:
