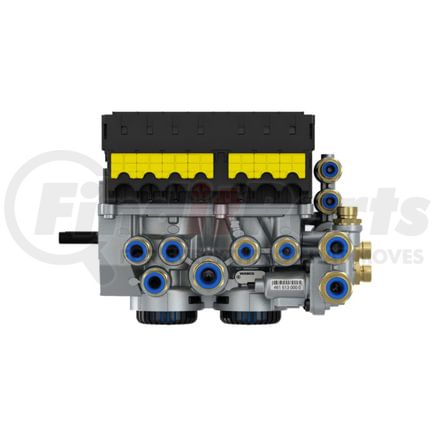

(888) 312-8812 Login SignupWABCO 4801020630 Electronic Brake Control Module - EBS Trailer Modulator, 24V
Tap to view 3 more
$2,69799
14 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
WABCO 4801020630 Part Description
WABCO 4801020630 Specifications
Product Attributes
| Max. operating pressure | 8.5 bar |
| Port thread 1 | 15 x 1.5 / 8 x 1 |
| Weight | 15.48 |
| Port thread 22 | 12 x 1.5 |
| Mounting | 2x M12 |
| Voltage | 24 V |
| Temperature Range | -40°C to +65°C |
| Port Thread 42 | 8 x 1 |
| Port thread 4 | 8 x 1 |
| Port Thread 5 | 8 x 1 |
| Distance between bolts | 70 mm |
| Size | 224 x 259 x 198 |
| Type | Premium |
| Port thread 11 | 12 x 1.5 / 8 x 1 |
| Protection class | IP 6K9K |
| System | 4S/3M |
| Calculated Volume (dm³) | 11.49 |
| Port thread 23 | 8 x 1 |
| Port thread 21 | 12 x 1.5 |
| Port thread 24 | 8 x 1 |
| Version | TEBS E with PEM |
| Port thread 3 | 2 Integrated Silencer |
WABCO 4801020630 Customer Reviews
No reviews yet
Be the first to review this product!
WABCO 4801020630 Manufacturer Information
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
