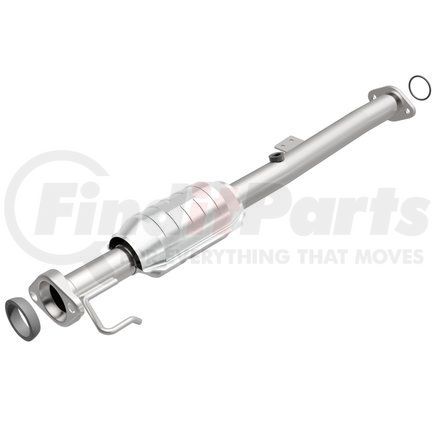

MagnaFlow Exhaust Product 23749 - HM Grade Direct-Fit Catalytic Converter
- Part Number
- 23749
- Manufacturer
- MAGNAFLOW EXHAUST PRODUCT
- Description
-
HM Grade Direct-Fit Catalytic Converter
details
$39349
In stock
limited availability at this price!
. Learn more
MAGNAFLOW EXHAUST PRODUCT part description
Product Description
HM Grade Direct-Fit Catalytic Converter
Features & Benefits
- Your trusted source for EPA-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
- Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
- OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration
- High strength 16 gauge 409 stainless steel tubing for exceptional corrosion resistance and maximum service life
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
- Simplifies installation with essential gaskets and hardware being included in the box
- Durable 308 stainless steel MIG welds
Keep the check engine light off with MagnaFlow HM Grade Federal/EPA Compliant Direct-Fit Catalytic Converter 23749. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this spun body converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE spun body design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. Designed to fit the 1999-2003 Chevrolet Tracker and 1999-2003 Suzuki Vitara, this direct-fit catalytic converter also interchanges with OE parts 14250-65D70 and 14250-65D81, among others. Avoid potential exhaust leaks by using the included gaskets to get a proper seal. This replacement part is designed to meet or exceed Federal emissions requirements set forth by the EPA, complying with legal standards for OBDII Federally registered vehicles with Federal/EPA Emission systems.
Product Attributes
| Air Tube Adaptable | No |
| Air Tube Count | 0 |
| Body Material | Stainless Steel |
| Body Type | Spun |
| California Air Resources Board (CARB) Certified | No |
| Clamps Included | No |
| Finish | Stainless Steel |
| Grade Type | Regular |
| Hangers Included | Yes |
| Heat Shield Attached | No |
| Inlet Gasket Included | Yes |
| Inlet Mounting Hardware Included | No |
| Inlet Type | Bolt-On |
| Outlet Gasket Included | Yes |
| Outlet Mounting Hardware Included | No |
| Outlet Type | Bolt-On |
| Overall Length | 35.25 IN |
| 9595 | Post Converter |
| Sensor Port Count | 1 |
| Series | HM Grade |
| Substrate Material | Ceramic |
| Title | MagnaFlow HM Grade Federal / EPA Compliant Direct-Fit Catalytic Converter 23749 |
| Tube Material | Stainless Steel |
| Universal Or Specific Fit | Specific |
| 9630 | No |
| Body Type | Spun |
| 10688 | Not Applicable |
| 5866165 | No |
| 59309 | HM Grade |
| 59822 | MagnaFlow HM Grade Federal / EPA Compliant Direct-Fit Catalytic Converter 23749 |
Additional Information
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8421320000 |
| Harmonized Tariff Code (HTS) | 8421320000 |
| NAFTA Preference Criterion Code | B |
| Warranty Distance | 25000 |
| Warranty Distance UOM | DH |
| Warranty Time | 5 |
| Warranty Time UOM | YR |
| UPC | 00841380031044 |
| UNSPSC | 25173701 |
Part Interchanges
Fits Vehicles
- Chevrolet Tracker (1999-2003)
- Suzuki Vitara (1999-2003)
Whether it's to boost engine performance or achieve a more aggressive sound when you step on the gas, Magnaflow® has got the exhaust parts you need. The preferred choice by mechanics and professional drivers for nearly 40 years, Magnaflow Exhaust Products is the world's leading manufacturer of aftermarket high-performance catalytic converters, mufflers, and exhaust systems. Driven by the three core principles of superior quality, power, and sound, Magnaflow parts utilize the best materials and manufacturing technologies to achieve top-of-the-line performance that leaves the competition behind in the dust. And even with such advanced features, each exhaust component is designed by Magnaflow to use stock mounting configurations for a hassle-free installation.
