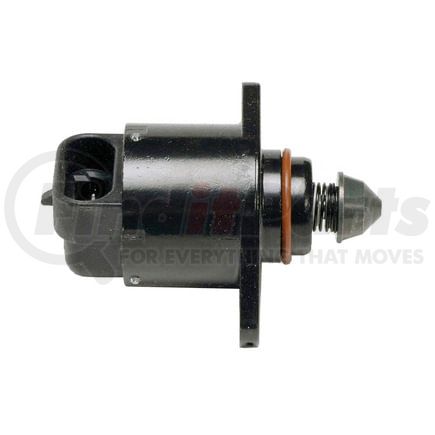

Delphi CV10027 - Fuel Injection Idle Air Control Valve
$8749
MSRP: $138.03
Save: $50.54
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Fuel Injection Idle Air Control Valve
Product Attributes
| Package Contents | Fuel Injection Idle Air Control Valve, Instruction Sheet |
| Item Grade | Standard Replacement |
| Length | 2.5 IN |
| Length | 64.5 MM |
| Terminal Type | Pin |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 2 |
| Housing Material | Metal |
| Terminal Quantity | 4 |
| Terminal Gender | Male |
| Housing Color | Black |
| Installation Instructions Included | Yes |
| Mounting Hole Diameter | 0.2 IN |
| Mounting Hole Diameter | 5.0 MM |
| Air Intake Port Maximum Diameter | 22.0 MM |
| 2225 | 0.9 IN |
| Mounting Hardware Included | No |
| Connector Shape | Oblong |
| Throttle Position Sensor Included | No |
| Voltage | 12.0 2H |
| Grade Type | Regular |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 8481809015 |
| Harmonized Tariff Code (HTS) | 8481809050 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | US |
| UPC | 00689604126615 |
| VMRS Code | 044003287 |
| UNSPSC | 25172405 |
Part Interchanges
- Wells AC105
- Wells AC140
- ACDelco 217408
- ACDelco 217429
- ACDelco 217437
- Airtex 2H1043
- Airtex 2H1045
- Siemens SE96163
- Standard Motor Products AC27
- Standard Motor Products AC6
- 150108
- BLD 3221
- BorgWarner 21758
- BorgWarner 21813
- Niehoff 21758
- General Motors 17076228
- General Motors 17090384
- General Motors 17111788
- General Motors 17113099
- Kem 150-108
- General Motors 19333272
Fits Vehicles
- Pontiac Firebird (1994-1995)
- GMC V3500 (1987-1991)
- GMC R3500 (1987-1991)
- GMC R2500 Suburban (1987-1991)
- GMC R2500 (1987-1989)
- GMC P3500 (1990-1997)
- GMC K3500 (1988-1995)
- GMC K2500 Suburban (1992-1995)
- GMC K2500 (1991-1995)
- GMC G3500 (1988-1996)
- GMC C3500 (1988-1995)
- GMC C2500 Suburban (1992-1995)
- GMC C2500 (1991-1995)
- Chevrolet V3500 (1989-1991)
- Chevrolet V30 (1987-1988)
- Chevrolet V2500 Suburban (1990)
- Chevrolet V20 Suburban (1987-1988)
- Chevrolet R3500 (1989-1991)
- Chevrolet R30 (1987-1988)
- Chevrolet R2500 Suburban (1989-1991)
- Chevrolet R2500 (1989)
- Chevrolet R20 Suburban (1987-1988)
- Chevrolet R20 (1987-1988)
- Chevrolet P30 (1990-1997)
- Chevrolet K3500 (1988-1995)
- Chevrolet K2500 Suburban (1992-1995)
- Chevrolet K2500 (1991-1995)
- Chevrolet Impala (1994)
- Chevrolet G30 (1988-1996)
- Chevrolet Corvette (1994)
- Chevrolet Caprice (1994)
- Chevrolet Camaro (1994-1995)
- Chevrolet C3500 (1988-1995)
- Chevrolet C2500 Suburban (1992-1995)
- Chevrolet C2500 (1991-1995)
- Chevrolet C1500 (1990-1993)
- Cadillac Commercial Chassis (1994)
- Cadillac Fleetwood (1994)
- Buick Commercial Chassis (1994)
- Buick Roadmaster (1994)
