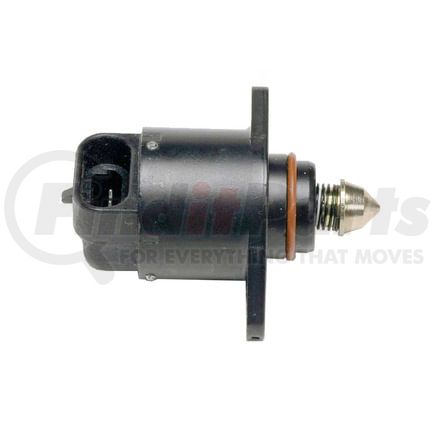

(888) 312-8812 Login SignupDELPHI CV10005 Fuel Injection Idle Air Control Valve
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
DELPHI CV10005 Part Description
DELPHI CV10005 Specifications
Product Attributes
| Package Contents | Fuel Injection Idle Air Control Valve, Instruction Sheet |
| Item Grade | Standard Replacement |
| Length | 2.5 IN |
| Length | 63.7 MM |
| Terminal Type | Pin |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 2 |
| Housing Material | Metal |
| Terminal Quantity | 4 |
| Terminal Gender | Male |
| Housing Color | Black |
| Installation Instructions Included | Yes |
| Mounting Hole Diameter | 0.2 IN |
| Mounting Hole Diameter | 5.4 MM |
| Air Intake Port Maximum Diameter | 22.0 MM |
| Air Intake Port Maximum Diameter | 0.9 IN |
| Mounting Hardware Included | No |
| Connector Shape | Oblong |
| Throttle Position Sensor Included | No |
| Voltage | 12.0 2H |
| Grade Type | Regular |
Additional Information
| Harmonized Tariff Code (HTS) | 8481809050 |
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 8481809015 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | US |
| UPC | 00689604126363 |
| VMRS Code | 044003287 |
| UNSPSC | 25172405 |
DELPHI CV10005 Part Interchanges
| Brand | Part Number |
|---|---|
| Wells | AC105 |
| ACDelco | 217409 |
| Airtex | 2H1045 |
| Siemens | SE95158 |
| Standard Motor Products | AC63 |
| N/A | 150105, 215-1006 |
| BLD | 3209 |
| BorgWarner | 21759 |
| Niehoff | 21759 |
| General Motors | 17059522, 17111816 |
| Echlin | 21759 |
| Kem | 150-105 |
| BWD | 21759 |
DELPHI CV10005 Fits Vehicles
- Oldsmobile Firenza (1987-1988)
- Chevrolet Corsica (1987-1991)
- Chevrolet Cavalier (1987-1991)
- Chevrolet Beretta (1987-1991)
- Buick Skyhawk (1987-1989)
