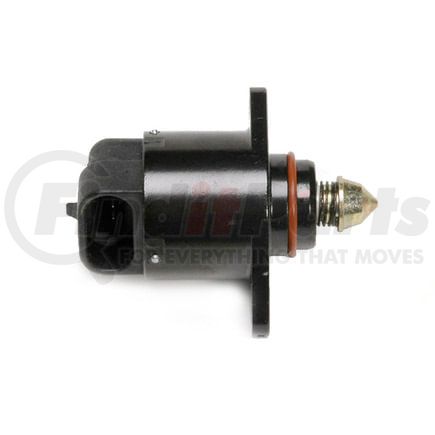

Delphi CV10000 - Fuel Injection Idle Air Control Valve
$6799
MSRP: $93.67
Save: $25.68
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Fuel Injection Idle Air Control Valve
Product Attributes
| Package Contents | Fuel Injection Idle Air Control Valve, Instruction Sheet |
| Item Grade | Standard Replacement |
| Length | 65.6 MM |
| Length | 2.6 IN |
| Terminal Type | Pin |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 2 |
| Housing Material | Metal |
| Terminal Quantity | 4 |
| Terminal Gender | Male |
| Housing Color | Black |
| Installation Instructions Included | Yes |
| Mounting Hole Diameter | 5.0 MM |
| Mounting Hole Diameter | 0.2 IN |
| Air Intake Port Maximum Diameter | 22.0 MM |
| 2225 | 0.9 IN |
| Mounting Hardware Included | No |
| Connector Shape | Oblong |
| Throttle Position Sensor Included | No |
| Voltage | 12.0 2H |
| Grade Type | Regular |
Additional Information
| Harmonized Tariff Code (HTS) | 8481809050 |
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 8481809015 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604126349 |
| VMRS Code | 044003287 |
| UNSPSC | 25172405 |
Part Interchanges
- General Motors 17112031
- General Motors 17059603
- General Motors 17111826
- Wells AC106
- ACDelco 217411
- Airtex 2H1020
- 8171118260
- Siemens SE95214
- Standard Motor Products AC15
- 150107
- BLD 3210
- BorgWarner 21757
- Niehoff 21757
- Echlin 21757
- Kem 150-107
- BWD 21757
- General Motors 19333268
- Isuzu 8-17111-826-0
- 215-1007
Fits Vehicles
- Pontiac LeMans (1988-1993)
- Pontiac Grand Prix (1990-1991)
- Pontiac Grand Am (1987-1993)
- Pontiac Fiero (1987-1988)
- Pontiac 6000 (1987-1991)
- Oldsmobile Cutlass Supreme (1990-1991)
- Oldsmobile Cutlass Cruiser (1987-1990)
- Oldsmobile Cutlass Ciera (1987-1992)
- Oldsmobile Cutlass Calais (1988-1991)
- Oldsmobile Calais (1987)
- Oldsmobile Achieva (1992-1993)
- Geo Storm (1990-1993)
- GMC Safari (1987-1989, 1992)
- GMC Sonoma (1991-1993)
- GMC S15 (1987-1990)
- GMC S15 Jimmy (1987-1988)
- Chevrolet S10 (1987-1993)
- Chevrolet S10 Blazer (1987-1988)
- Chevrolet Lumina (1990-1992)
- Chevrolet LLV (1987-1993)
- Chevrolet Celebrity (1987-1990)
- Chevrolet Beretta (1990-1993)
- Chevrolet Astro (1987-1989, 1992)
- Buick Somerset (1987)
- Buick Skylark (1987-1993)
- Buick Century (1987-1992)
- Isuzu Stylus (1991-1993)
- Isuzu Impulse (1990-1992)
