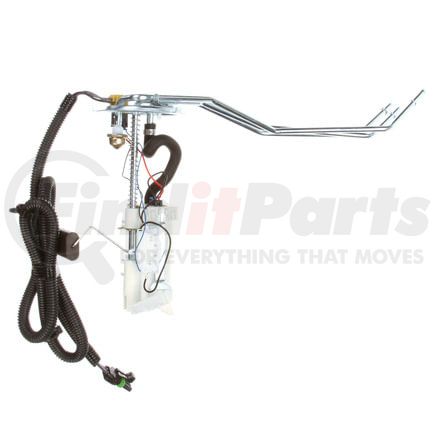

(888) 312-8812 Login SignupDELPHI HP10014 Fuel Pump Hanger Assembly
MSRP: $585.31
$33399
Save $251.32
Limited availability at this price!
In Stock
Get it by Friday, Dec 26
DELPHI HP10014 Part Description
DELPHI HP10014 Specifications
Product Attributes
| Fuel Level Sender Assembly Included | Yes |
| Item Grade | Standard Replacement |
| System Pressure | 44 psi |
| Package Contents | Fuel Pump Hanger Assembly w/Float Arm, Seal, Lock Ring, Instruction Sheet |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 13.5 2H |
| Fuel Type | Gas |
| Maximum Pressure | 73.0 PS |
| Terminal Type | Pin |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 3 |
| Terminal Gender | Female |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 3 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 1.0 82 |
| Resistance Ohms Full | 90.0 82 |
| Internal Or External Strainer | External |
| Pump Type | Electric |
| Average Current Draw | 4.0 68 |
| Average Flow Rating | 26.0 GPH |
| Material | Metal |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Shape | Rectangle |
| Lock Ring Included | Yes |
| Connector Gender | Male |
| Inlet Quantity | 1 |
| Fuel Pump Included | Yes |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 44 PS |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604187357 |
| VMRS Code | 044003257 |
| UNSPSC | 40151532 |
DELPHI HP10014 Part Interchanges
| Brand | Part Number |
|---|---|
| General Motors | 19111401, 25028957 |
| ACDelco | 19111401, 25028956, 25028957, FLS1020 |
| Airtex | E3270 |
| Spectra Premium | SP127B1H, SP128B1H |
| AutoZone | FHP10014 |
| N/A | P77387H, P77389H |
DELPHI HP10014 Fits Vehicles
- Chevrolet Caprice (1994-1996)
- Buick Roadmaster (1994-1996)
DELPHI HP10014 Cross References
We have 1 alternatives for the HP10014 by DELPHI:
