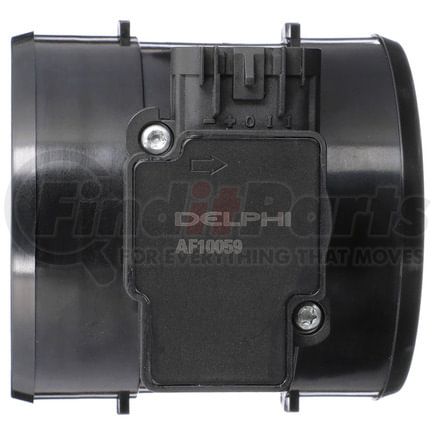

(888) 312-8812 Login SignupDELPHI AF10059 Mass Air Flow Sensor
$12299
Limited availability at this price!
5 Day Lead Time
Get it by Wednesday, Dec 24
DELPHI AF10059 Part Description
DELPHI AF10059 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Package Contents | Mass Air Flow Sensor - Complete Assembly, Jumper Harness |
| Color | Black |
| Housing Included | Yes |
| Inlet Connection Diameter | 3.583 IN |
| Inlet Connection Diameter | 91 MM |
| Outlet Connection Diameter | 3.58 IN |
| Outlet Connection Diameter | 91 MM |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Wire Quantity | 3 |
| Grade Type | Regular |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Housing Material | Plastic |
| Terminal Quantity | 5 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | Yes |
| Mounting Type | Band Clamp |
| Mounting Bracket Included | No |
| Sensor Casing Length | 95.5 MM |
| Sensor Casing Width | 97 MM |
| Voltage | 12.0 2H |
| Wiring Harness Length | 5.0 IN |
| Gasket Or Seal Included | No |
| Seal Quantity | 0 |
| Sensor Casing Length | 3.7 IN |
| Sensor Casing Width | 3.8 IN |
| Wiring Harness Length | 127.0 MM |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Harmonized Tariff Code (HTS) | 9026802000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604200551 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10059 Part Interchanges
| Brand | Part Number |
|---|---|
| Spectra Premium | MA101 |
| ACDelco | 2134582 |
| Carquest | MQ7209 |
| Richporter | MA101 |
| BWD | 29008 |
| Duralast | DL-6001 |
| General Motors | 19208522 |
| CARDONE New | 86-8308 |
| CARDONE Reman | 74-8308 |
| WPS World Power Systems | MAF8309 |
| Standard Motor Products | MF8308 |
| NAPA Reman Computers | MAF68308, XTP48308 |
| Blue Streak Electronics New | MF8308N |
| N/A | 245-1067, MA232 |
DELPHI AF10059 Fits Vehicles
- GMC Savana 3500 (2001-2002)
- GMC Savana 2500 (2001-2002)
- GMC Savana 1500 (2001-2002)
- Chevrolet Express 3500 (2001-2002)
- Chevrolet Express 2500 (2001-2002)
- Chevrolet Express 1500 (2001-2002)
