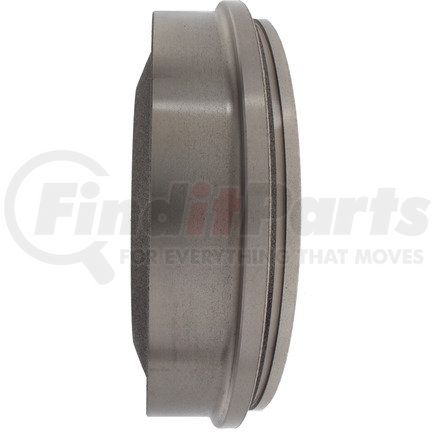

Centric 123.66045 - C-Tek Standard Brake Drum
$8299
MSRP: $91.76
Save: $8.77
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Kgs | 11.295 |
| Weight [cntrc] Lbs | 24.850 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 139.700 |
| Bolt Circle Diameter [cntrc] In | 5.500 |
| Hub Hole / Register [cntrc] Mm | 78.600 |
| Hub Hole / Register [cntrc] In | 3.094 |
| Height [cntrc] Mm | 96.520 |
| Height [cntrc] In | 3.800 |
| Friction Surface Width [cntrc] Mm | 76.200 |
| Friction Surface Width [cntrc] In | 3.000 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 296.500 MM |
| Maximum Brake Diameter (Discard) | 11.673 IN |
| Bolt Hole Quantity | 6 |
| Outside Diameter | 335.500 MM |
| Outside Diameter | 13.209 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 16.500 MM |
| Mounting Hole Diameter | 0.650 IN |
| Nominal Drum Diameter | 295.000 MM |
| Nominal Drum Diameter | 11.614 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890879145 |
Part Interchanges
CENTRIC 123.66045 Cross Reference
We have 1 alternatives for the 123.66045 by CENTRIC:
Fits Vehicles
- Chevrolet Silverado 1500 (2009-2013)
- GMC Sierra 1500 (2009-2013)
