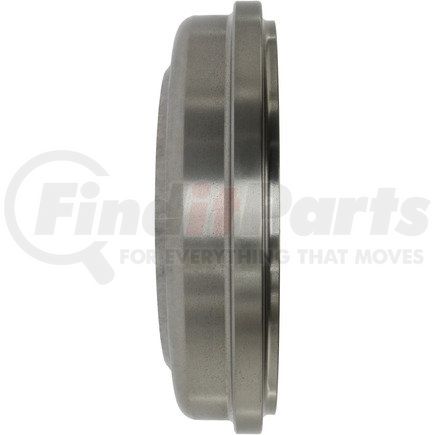

Centric 123.62037 - C-Tek Standard Brake Drum
$2549
MSRP: $32.05
Save: $6.56
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Kgs | 3.841 |
| Weight [cntrc] Lbs | 8.450 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 100.000 |
| Bolt Circle Diameter [cntrc] In | 3.937 |
| Hub Hole / Register [cntrc] Mm | 57.000 |
| Hub Hole / Register [cntrc] In | 2.244 |
| Height [cntrc] Mm | 56.998 |
| Height [cntrc] In | 2.244 |
| Friction Surface Width [cntrc] Mm | 38.800 |
| Friction Surface Width [cntrc] In | 1.528 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 201.000 MM |
| Maximum Brake Diameter (Discard) | 7.913 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 230.100 MM |
| Outside Diameter | 9.059 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 12.600 MM |
| Mounting Hole Diameter | 0.496 IN |
| Nominal Drum Diameter | 200.000 MM |
| Nominal Drum Diameter | 7.874 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 805890915096 |
Part Interchanges
CENTRIC 123.62037 Cross Reference
We have 1 alternatives for the 123.62037 by CENTRIC:
Fits Vehicles
- Pontiac G3 Wave (2009)
- Pontiac G3 (2009-2010)
- Chevrolet Beat (2018-2020)
- Pontiac Wave5 (2005, 2007)
- Chevrolet Spark (2011-2015)
- Chevrolet Aveo5 (2006-2011)
- Pontiac Wave (2005-2008)
- Chevrolet Aveo (2004-2018)
