(888) 312-8812 Login SignupCENTRIC 123.44034 C-Tek Standard Brake Drum
$6449
Limited availability at this price!
In Stock
Get it by Friday, Jan 30
CENTRIC 123.44034 Part Description
Manufacturer
Product Description

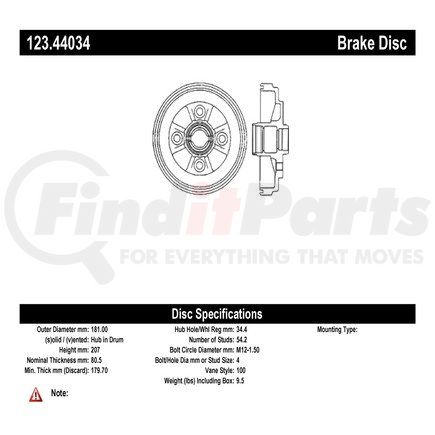

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
CENTRIC 123.44034 Specifications
Product Attributes
| Weight [cntrc] Kgs | 4.318 |
| Weight [cntrc] Lbs | 9.500 |
| Mounting Type [cntrc] | Hub & Drum |
| Bolt Circle Diameter [cntrc] Mm | 100.000 |
| Bolt Circle Diameter [cntrc] In | 3.937 |
| Stud Thread Pitch [cntrc] Mm | 1.50 |
| Hub Hole / Register [cntrc] Mm | 54.000 |
| Hub Hole / Register [cntrc] In | 2.126 |
| Height [cntrc] Mm | 80.500 |
| Height [cntrc] In | 3.169 |
| Friction Surface Width [cntrc] Mm | 34.400 |
| Friction Surface Width [cntrc] In | 1.354 |
| Product Grade [cntrc] | Standard |
| Stud Thread Size | 12 MM |
| Maximum Brake Diameter (Discard) | 181.000 MM |
| Maximum Brake Diameter (Discard) | 7.126 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 207.000 MM |
| Outside Diameter | 8.150 IN |
| Outer Cooling Fins | No |
| Nominal Drum Diameter | 179.700 MM |
| Nominal Drum Diameter | 7.075 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890914730 |
CENTRIC 123.44034 Cross References
| Brand | Part Number |
|---|---|
| N/A | BD125356, BD125633, 0832665, 35060, 35029, BD920120, 920120, 35060G, 35029G, 587, 4204310030, 4204316010, 4204319015, 4204319045, 4240310030, 140648, PDR0648, 207940, 207624, 6401676, JBD380, D9447, 100476, 87548, 87642, 9642, 9642R, 9548, 9548R, 109642, 9642DGS, 9548DGS, 8822031, 36576033 |
| PRONTO | BD920120 |
| RAYBESTOS | 9548, 9548R, 9547, 9547R |
| WAGNER | BD125633 |
CENTRIC 123.44034 Fits Vehicles
- Toyota Tercel (1993-1999)
- Toyota Paseo (1993-1999)
