Centric 123.44033 - C-Tek Standard Brake Drum
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description

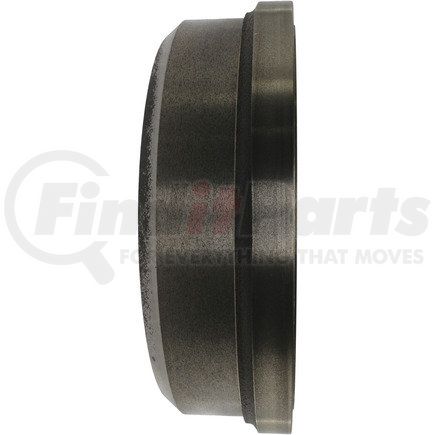

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Misc Holes [cntrc] | 8 |
| Weight [cntrc] Kgs | 13.864 |
| Weight [cntrc] Lbs | 30.500 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 139.700 |
| Bolt Circle Diameter [cntrc] In | 5.500 |
| Hub Hole / Register [cntrc] Mm | 106.050 |
| Hub Hole / Register [cntrc] In | 4.175 |
| Height [cntrc] Mm | 97.500 |
| Height [cntrc] In | 3.839 |
| Friction Surface Width [cntrc] Mm | 78.800 |
| Friction Surface Width [cntrc] In | 3.102 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 297.000 MM |
| Maximum Brake Diameter (Discard) | 11.693 IN |
| Bolt Hole Quantity | 6 |
| Outside Diameter | 345.000 MM |
| Outside Diameter | 13.583 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 14.500 MM |
| Mounting Hole Diameter | 0.571 IN |
| Nominal Drum Diameter | 295.000 MM |
| Nominal Drum Diameter | 11.614 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 805890914723 |
Part Interchanges
Fits Vehicles
- Toyota T100 (1993-1998)
