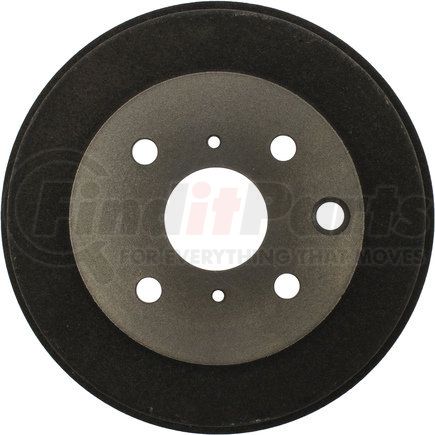

Centric 123.44012 - Standard Brake Drum
$3049
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Standard Brake Drum
Product Attributes
| Misc Holes [cntrc] | 3 |
| Weight [cntrc] Kgs | 5.227 |
| Weight [cntrc] Lbs | 11.500 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Hub Hole / Register [cntrc] Mm | 60.000 |
| Hub Hole / Register [cntrc] In | 2.362 |
| Height [cntrc] Mm | 71.120 |
| Height [cntrc] In | 2.800 |
| Friction Surface Width [cntrc] Mm | 54.610 |
| Friction Surface Width [cntrc] In | 2.150 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 230.600 MM |
| Maximum Brake Diameter (Discard) | 9.079 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 271.500 MM |
| Outside Diameter | 10.689 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 14.400 MM |
| Mounting Hole Diameter | 0.567 IN |
| Nominal Drum Diameter | 228.600 MM |
| Nominal Drum Diameter | 9.000 IN |
Part Interchanges
CENTRIC 123.44012 Cross Reference
We have 2 alternatives for the 123.44012 by CENTRIC:
Fits Vehicles
- Toyota Celica (1983, 1985)
