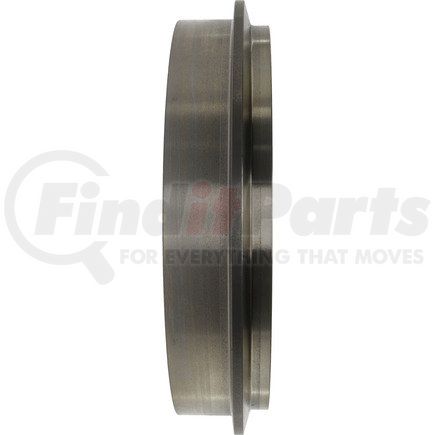

Centric 123.34005 - C-Tek Standard Brake Drum
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Weight [cntrc] Kgs | 4.773 |
| Weight [cntrc] Lbs | 10.500 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 120.650 |
| Bolt Circle Diameter [cntrc] In | 4.750 |
| Hub Hole / Register [cntrc] Mm | 74.930 |
| Hub Hole / Register [cntrc] In | 2.950 |
| Height [cntrc] Mm | 59.180 |
| Height [cntrc] In | 2.330 |
| Friction Surface Width [cntrc] Mm | 46.600 |
| Friction Surface Width [cntrc] In | 1.835 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 229.500 MM |
| Maximum Brake Diameter (Discard) | 9.035 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 270.000 MM |
| Outside Diameter | 10.630 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 14.500 MM |
| Mounting Hole Diameter | 0.571 IN |
| Nominal Drum Diameter | 228.600 MM |
| Nominal Drum Diameter | 9.000 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 805890914556 |
Part Interchanges
Fits Vehicles
- BMW 318is (1992-1996)
- BMW 318i (1992-1996)
