(888) 312-8812 Login SignupRAYBESTOS 580900R Raybestos R-Line Brake Rotor
MSRP: $71.29
$4549
Save $25.80
Limited availability at this price!
In Stock
Get it by Thursday, Feb 12
RAYBESTOS 580900R Part Description
Manufacturer
Product Description

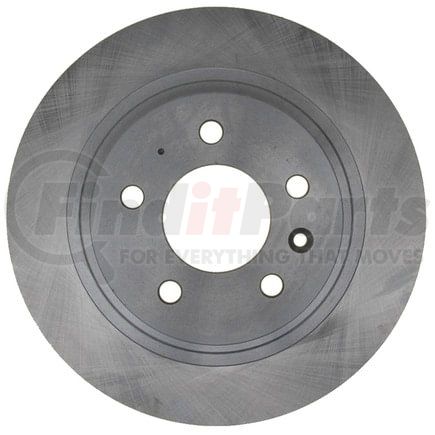

Raybestos R-Line Brake Rotor
Application Summary
2015-2014 Chevrolet Cruze Rear, 2015-2012 Buick Verano Rear, 2015-2011 Chevrolet Volt Rear, 2014 Cadillac ELR Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 580900R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.787 IN |
| Center Hole Diameter | 70.8 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.39 IN |
| Discard Thickness | 9.9 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7.48 IN |
| Inside Diameter | 190 MM |
| Mounting Bolt Hole Circle Diameter | 4.528 IN |
| Mounting Bolt Hole Circle Diameter | 115 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.47 IN |
| Nominal Thickness | 11.95 MM |
| Outside Diameter | 11.496 IN |
| Outside Diameter | 292 MM |
| Overall Height | 1.776 IN |
| Overall Height | 45.1 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| Canadian Harmonizing Tariff Code | 8708309990 |
| UPC | 00887213029000 |
RAYBESTOS 580900R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH323920, YH323920P |
| AUTOZONE | 41273, 41273DG |
| BENDIX | PRT6097 |
| BOSCH | 25011442 |
| BRAKEBEST | 25011442, 580900, 580900FZN, 580900R, 580900RGS |
| CENTRIC | 120.62131, 121.62131, 126.62131SL, 126.62131SR, 127.62131L, 127.62131R, 128.62131L, 128.62131R, 320.62131 |
| Centric Parts | 120.62131, 121.62131, 126.62131SL, 126.62131SR, 127.62131L, 127.62131R, 128.62131L, 128.62131R, 320.62131 |
| Dura Corp | BR901034, BR901034-01 |
| DuraGo | BR901034, BR901034-01 |
| GM | 13504280, 13505762 |
| General Motors | 13504280, 13505762 |
| MAGMA PRODUCTS | PMR223136 |
| Omnicraft | QBRR659 |
| PROMAX | 14-55196 |
| Qualis | 41273 |
| TopNotch | TN580900GEO |
| UAP | R62131 |
| WAGNER BRAKE | BD180491 |
| WORLDPAC | 1407-323920 |
| Winhere | 661888 |
RAYBESTOS 580900R Fits Vehicles
- Chevrolet Orlando (2012-2014)
- Buick Cascada (2016-2019)
- Cadillac ELR (2014-2016)
- Chevrolet Cruze (2013-2015)
- Buick Verano (2012-2017)
- Chevrolet Volt (2011-2015)
